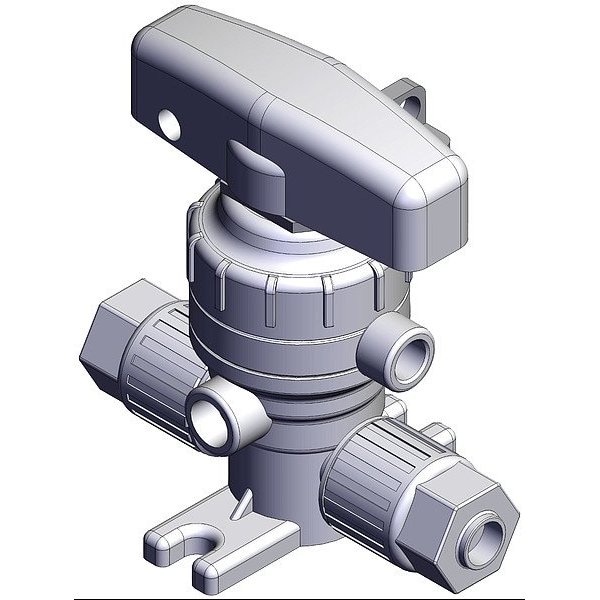

High purity chemical valve
Mfr # LVQH30-Z11-1
Zoro # G122441887
product price:Â $265.99
/ea
Free Shipping & Returns
Key Features
For Media
Chemicals
Ambient Temperature - Maximum
60 Degrees C
Body Material
PFA
Handle Type
Lever
Connection Gender - Side 1
Female
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- LVQH30-Z11-1
- Zoro #
- G122441887
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Wire Rope Length
- 83 mm
- Nominal Valve Size
- 3/8 in
Details
- For Media
- Chemicals
- Ambient Temperature - Maximum
- 60 Degrees C
- Body Material
- PFA
- Handle Type
- Lever
- Connection Gender - Side 1
- Female
- Connection Type - Side 2
- Tube
- Item
- Chemical Liquid Valve
- Diaphragm Material
- PTFE
- Connection Gender - Side 2
- Female
- Inlet Connection Gender
- Female
- Connection Type - Side 1
- Tube
- Operating Temperature - Maximum
- 0 Degrees C
- Coefficient of Volume (Cv)
- 1.3
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
- Ambient Temperature - Minimum
- 0 Degrees C
- Maximum Pressure - Operating
- 0.5 MPa
- Operating Temperature - Minimum
- 0 Degrees C
Description
Chemical Liquid Valve, Coefficient of Volume (Cv) 1.3, Nominal Valve Size 3/8 in, Connection Type - Side 1 Tube, Connection Type - Side 2 Tube, For Media Chemicals, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL, Diaphragm Material PTFE, Seal Material Not Applicable, Maximum Pressure - Operating 0.5 MPa, Operating Temperature - Maximum 0 Degrees C, Handle Type Lever, Body Material PFA, Inlet Connection Gender Female, Overall Length 83 mm
Restrictions
This is a restricted item in the USA. It cannot be used for potable water applications.
