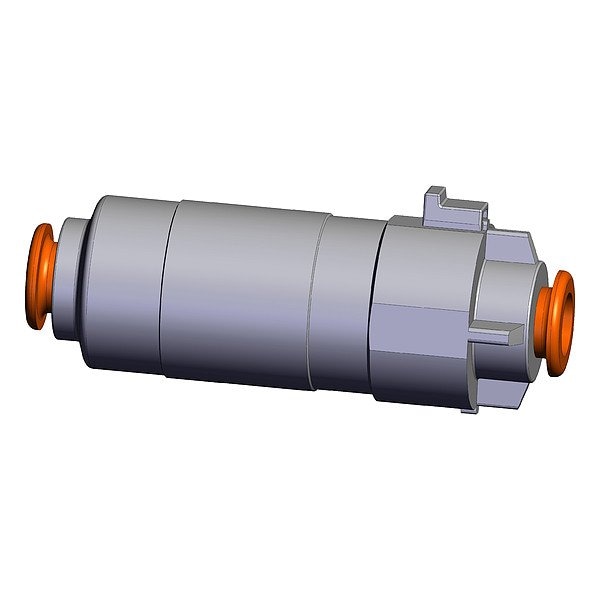

In-Line Air Filter, Push-to-Connect
Mfr # ZFC7E
Zoro # G021916288
product price:Â $20.95
/eaKey Features
For Fluid Type
Air
Filter Rating
5 micron
For Substance Type
Air
Filter Efficiency
95 %
System Location
Air Line
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZFC7E
- Zoro #
- G021916288
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Air Inlet Size
- 12 mm
- Outside Diameter
- 5/16 in
- Air Outlet Size
- 12 mm
- Wire Rope Length
- 68.3 mm
- Overall Length
- 68.3 mm
Details
- Item
- In-Line Air Filter
- For Fluid Type
- Air
- Filter Rating
- 5 micron
- For Substance Type
- Air
- Filter Efficiency
- 95 %
- System Location
- Air Line
- Body Material
- Polycarbonate
- Pressure Drop
- 30 kPa
- Weight
- 20 g
- Minimum Operating Pressure
- -100 kPa
- Maximum Operating Temperature
- 60 Degrees C
- Filter Element Material
- Sintered Resin
- Maximum Flow Rate
- 450 lpm
- Air Inlet Type
- Push-to-Connect
- Series
- ZF
- Minimum Operating Temperature
- 0 Degrees C
- Air Outlet Type
- Push-to-Connect
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Maximum Operating Pressure
- 1 MPa
Description
In-Line Air Filter, Air Inlet Size 12 mm, Air Inlet Type Push-to-Connect, Air Outlet Size 12 mm, Air Outlet Type Push-to-Connect, Overall Length 68.3 mm, Outside Diameter 5/16 in, Filter Rating 5 micron, Maximum Flow Rate 450 lpm, Maximum Operating Pressure 1 MPa, Body Material Polycarbonate, Filter Efficiency 95 Percent, Filter Element Material Sintered Resin, For Fluid Type Air, For Substance Type Air, Maximum Operating Temperature 60 Degrees C, Minimum Operating Pressure -100 kPa
