Shop REELCRAFT

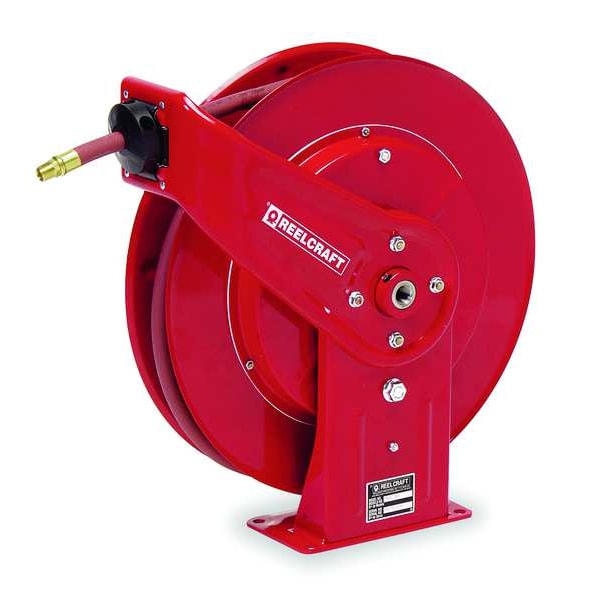

Spring Return Hose Reel, 1/4 in Hose Diameter, 50 ft Length, 5,000 psi Max. Pressure, Red

  • Mfr # 7450 OHP
  • Zoro # G0795977
product price:
$
748.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
5,000 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose; Bumper
Hose End Configuration
1/4 in MNPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7450 OHP
Zoro #
G0795977
UPC #
699567009801
Country of Origin
United States

Dimensions

Hose Inside Dia.
1/4 in
Overall Height
20 1/4 in
Hose Length
50 ft
Overall Width
7 in
Overall Length
19 3/4 in
Reel Diameter
9 in
Hose Outside Dia.
9/16 in
Length
19 3/4 in
Height
20 1/4 in
Reel Width
7 in
Mount Base Height
8 61/64 in
Mounting Hole Center to Center Width
3 7/8 in
Mount Base Width
4 61/64 in
Swivel Inlet Size
1/2 in
Swivel Inlet Thread Size
1/2 in - 14
Fitting Size
1/4 in x 1/4 in
Mounting Hole Center to Center Height
7 13/16 in
Mount Hole Diameter
1/2 in
Hose Fitting B Size
1/4 in
Swivel Outlet Size
1/2 in
Hose Fitting A Size
1/4 in
Swivel Outlet Thread Size
1/2 in - 14
Overall Dimensions
19 3/4 in L x 7 in W x 20 1/4 in H
Wire Rope Length
19 3/4 in
Fits Chest Size
Heavy Duty

Details

Item
Spring Return Hose Reel
Max. Pressure
5,000 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose; Bumper
Hose End Configuration
1/4 in MNPT
Hose Color
Black
Hose Material
SAE 100 R2 T
Mounting
Bench and Truck, Ceiling, Floor, Wall
Reel Color
Red
Features
Heavy Duty
Media - Hose Reels
Grease
Application
Industrial, Automotive Service Centers, Transmission Shops, Fleet Maintenance Facilities, Pneumatic Tools, Aircraft Maintenance, Tire Stores, Agriculture, Service Trucks, Wash Down
Swivel Material
Nickel Plated Steel
Duty Rating
Heavy Duty
Housing Material
Steel
Max. Temp.
210 Degrees F
Hose Outlet
1/4 in (M)NPT
Bearings
Permanently Lubricated
Seal Type
Neoprene
Finish - Hose Reels
Powder Coated
Latch
Cam Latch with Roller Guide
Reel Inlet
1/2 in (F)NPT
Weight
55 lb
Hose Capacity
50 ft (1/4 in I.D.)
Spiral Hose Guard
No
Reel Finish
Powder Coated
Base Motion Type
Stationary
Includes Leader Hose
No
Hose Fitting A Gender
Male
Bearing Construction
Permanently Lubricated
Hose Tube Material
Synthetic Rubber
Maximum Operating Temperature
210 Degrees F
Hose Fitting B Material
Steel
Swivel Outlet Type
NPT
Pedestal Type
Single Pedestal
Hose Fitting B Type
NPT
Includes Hose
Yes
Swivel Inlet Gender
Female
Latch Type
Spring Loaded
Number of Guide Arms
Single Arm
Hose Fitting B Gender
Male
Minimum Operating Temperature
32 Degrees F
Hose Fitting A Material
Steel
Hose Reel Type
Ceiling, Floor, Vehicle, Wall Mount Hose Reel
Twin Hose Compatible
No
Swivel Outlet Gender
Male
Fitting Type
NPT x NPT
Includes Hose Stop
Yes
Speed Limited Retraction
No
Hose Cover Material
Synthetic Rubber
Number of Mount Holes
4
Hose Reel Primary Application
Grease
Corrosion-Resistant
Yes
Fasteners Included
No
For Dual Hose
No
Hose Fitting A Type
NPT
Maximum Operating Pressure
5,000 psi
Reel Material
Carbon Steel
Swivel Inlet Type
NPT
Type
Heavy Duty Industrial, Spring Return

Description

Spring Return Hose Reel, Grease, 5,000 psi, Hose Capacity 50 ft (1/4 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 1/4 in, Hose Length 50 ft, Reel Material Carbon Steel, Mounting Location Ceiling, Floor, Truck, Wall, Speed Limited Retraction No, Overall Height 20 1/4 in, Overall Length 19 3/4 in, Overall Width 7 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Black, Hose Cover Material Synthetic Rubber, Hose Fitting A Gender Male
