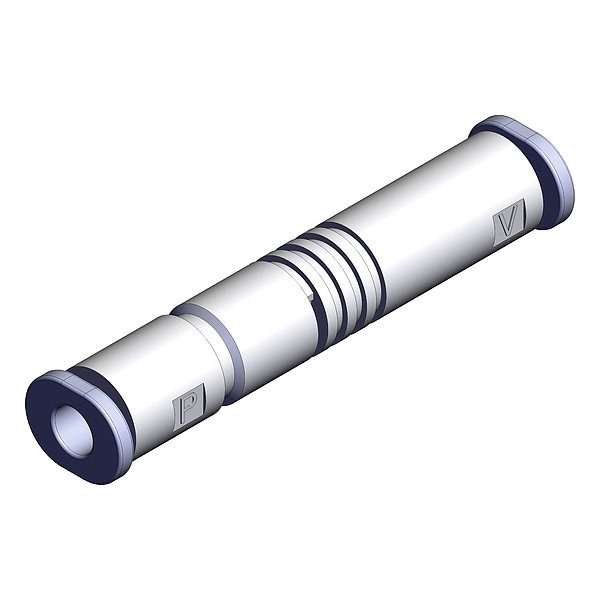

In-line Type Vacuum Ejector
Mfr # ZU04SA
Zoro # G021915588
product price:Â $21.29
/eaKey Features
Maximum Supply Pressure
0.6 MPa
Overall Height
7.7 mm
Wire Rope Length
59 mm
Overall Width
10 mm
Pressure Port Type
Push-to-Connect
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZU04SA
- Zoro #
- G021915588
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 7.7 mm
- Wire Rope Length
- 59 mm
- Overall Width
- 10 mm
- Pressure Port Size
- 4 mm
- Vacuum Port Size
- 4 mm
- Overall Depth
- 47 mm
- Nozzle Diameter
- .4mm
Details
- Item
- Vacuum Ejector
- Maximum Supply Pressure
- 0.6 MPa
- Pressure Port Type
- Push-to-Connect
- Pressure Port Gender
- Female
- Series
- ZU-A
- Vacuum Port Type
- Push-to-Connect
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Air Consumption
- 7.7 lpm
- Weight
- 2.4 g
- Exhaust Port Type
- Push-to-Connect
- Vacuum Port Gender
- Female
- Maximum Flow Rate
- 3.2 lpm
- Number of Stages
- 1
- Minimum Supply Pressure
- 0.1 MPa
- Maximum Operating Temperature
- 50 Degrees C
- Minimum Operating Temperature
- -5 Degrees C
- Maximum Vacuum Pressure
- -87 kPa
Description
Item Vacuum Ejector, Air Consumption 7.7 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 3.2 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure -87 kPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.1 MPa, Minimum Vacuum Pressure Not Applicable, Nozzle Diameter .4mm
