Shop SMC

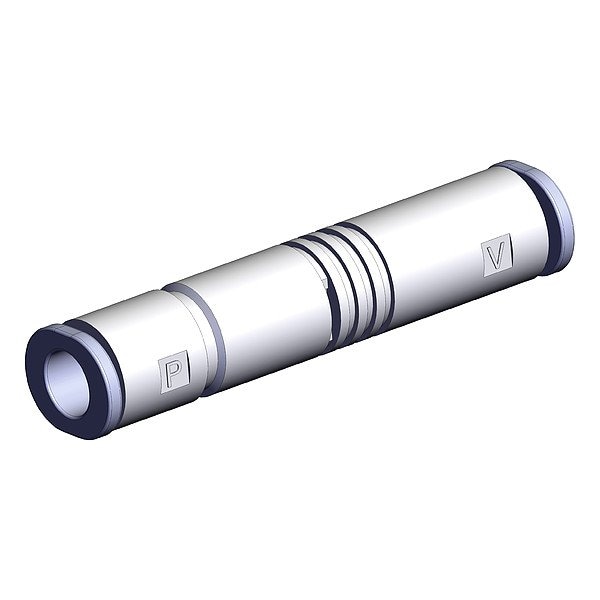

In-line Type Vacuum Ejector

  • Mfr # ZU05SA

  • Zoro # G221915494

product price:
$
22.59
/ea

Key Features

Overall Height
9.7 mm
Wire Rope Length
59 mm
Overall Width
12 mm
Overall Depth
52 mm
Maximum Vacuum Pressure
-90 kPa
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZU05SA
Zoro #
G221915494
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
9.7 mm
Wire Rope Length
59 mm
Overall Width
12 mm
Overall Depth
52 mm
Pressure Port Size
6 mm
Nozzle Diameter
.5mm
Vacuum Port Size
6 mm
Overall Length
59 mm
Length
59 mm

Details

Maximum Vacuum Pressure
-90 kPa
Item
Vacuum Ejector
Vacuum Port Gender
Female
Vacuum Port Type
Push-to-Connect
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Series
ZU-A
Pressure Port Type
Push-to-Connect
Maximum Flow Rate
7 lpm
Minimum Operating Temperature
-5 Degrees C
Air Consumption
14 lpm
Minimum Supply Pressure
0.1 MPa
Pressure Port Gender
Female
Number of Stages
1
Maximum Operating Temperature
50 Degrees C
Weight
3.9 g
Maximum Supply Pressure
0.6 MPa
Exhaust Port Type
Push-to-Connect

Description

Item Vacuum Ejector, Air Consumption 14 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 7 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure -90 kPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.1 MPa, Minimum Vacuum Pressure Not Applicable, Nozzle Diameter .5mm
