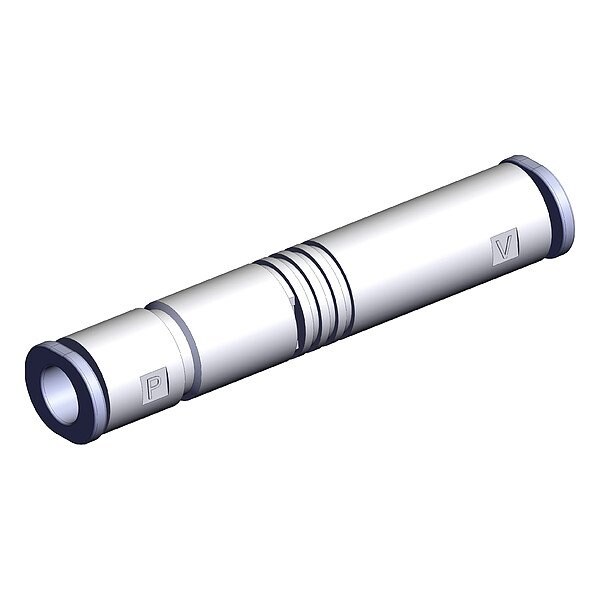

In-line Type Vacuum Ejector
Mfr # ZU07LA
Zoro # G221916040
product price:Â $23.99
/eaKey Features
Vacuum Port Gender
Female
Minimum Operating Temperature
-5 Degrees C
Overall Width
12 mm
Minimum Supply Pressure
0.1 MPa
Vacuum Port Type
Push-to-Connect
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZU07LA
- Zoro #
- G221916040
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Width
- 12 mm
- Pressure Port Size
- 6 mm
- Overall Depth
- 59 mm
- Nozzle Diameter
- .7mm
- Vacuum Port Size
- 6 mm
- Overall Height
- 9.7 mm
- Wire Rope Length
- 59 mm
Details
- Vacuum Port Gender
- Female
- Minimum Operating Temperature
- -5 Degrees C
- Minimum Supply Pressure
- 0.1 MPa
- Vacuum Port Type
- Push-to-Connect
- Maximum Flow Rate
- 16 lpm
- Number of Stages
- 1
- Item
- Vacuum Ejector
- Weight
- 4.3 g
- Air Consumption
- 28 lpm
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Pressure Port Type
- Push-to-Connect
- Maximum Supply Pressure
- 0.6 MPa
- Series
- ZU-A
- Exhaust Port Type
- Push-to-Connect
- Pressure Port Gender
- Female
- Maximum Vacuum Pressure
- -90 kPa
- Maximum Operating Temperature
- 50 Degrees C
Description
Item Vacuum Ejector, Air Consumption 28 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 16 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure -90 kPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.1 MPa, Minimum Vacuum Pressure Not Applicable, Nozzle Diameter .7mm
