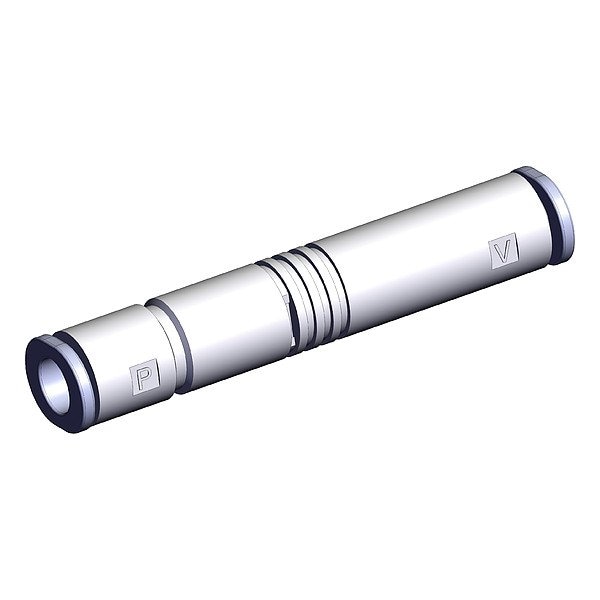

In-line Type Vacuum Ejector
Mfr # ZU07SA
Zoro # G521915286
product price:Â $23.99
/eaKey Features
Exhaust Port Type
Push-to-Connect
Weight
4.3 g
Minimum Supply Pressure
0.1 MPa
Maximum Vacuum Pressure
-90 kPa
Pressure Port Type
Push-to-Connect
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ZU07SA
- Zoro #
- G521915286
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Vacuum Port Size
- 6 mm
- Overall Width
- 12 mm
- Overall Height
- 9.7 mm
- Wire Rope Length
- 59 mm
- Nozzle Diameter
- .7mm
- Pressure Port Size
- 6 mm
- Overall Depth
- 59 mm
- Overall Length
- 59 mm
Description
Item Vacuum Ejector, Air Consumption 28 lpm, Cartridge Type Not Applicable, Electrical Connection Type Not Applicable, Exhaust Port Size Not Applicable, Exhaust Port Type Push-to-Connect, Includes Not Applicable, Maximum Flow Rate 11 lpm, Maximum Operating Temperature 50 Degrees C, Maximum Supply Pressure 0.6 MPa, Maximum Vacuum Pressure -90 kPa, Minimum Operating Temperature -5 Degrees C, Minimum Supply Pressure 0.1 MPa, Minimum Vacuum Pressure Not Applicable, Nozzle Diameter .7mm
