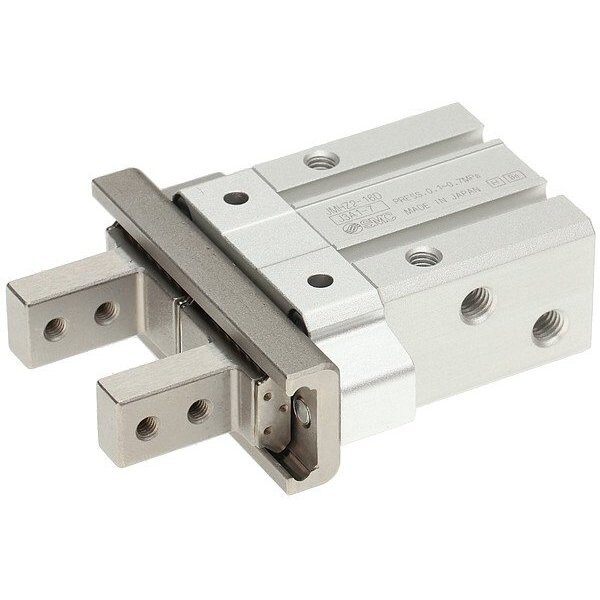

JMHZ2, Parallel Gripper
Mfr # JMHZ2-16D
Zoro # G614534691
product price:Â
$
301.99
/ea
Free Shipping & Returns
Key Features
Open Width
40 mm
Overall Height
20 mm
Overall Length
65.5 mm
Repeatability
+/-0.01 mm
Stroke Length
10 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- JMHZ2-16D
- Zoro #
- G614534691
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Open Width
- 40 mm
- Overall Height
- 20 mm
- Overall Length
- 65.5 mm
- Stroke Length
- 10 mm
- Overall Width
- 50 mm
- Bore Diameter
- 16 mm
- Wire Rope Length
- 65.5 mm
- Length
- 65.5 mm
Details
- Item
- Parallel Gripper
- Repeatability
- +/-0.01 mm
- Maximum Operating Pressure
- 101 psi
- Minimum Operating Pressure
- 15 psi
- Minimum Operating Temperature
- 14 Degrees F
- Weight
- 128 lb
- Series
- JMHZ2
- Maximum Operating Temperature
- 140 Degrees F
- System of Measurement
- Metric
- Standards
- RoHS Compliant
Description
Parallel Gripper, Series JMHZ2, Open Width 40 mm, Stroke Length 10 mm, Maximum Operating Pressure 101 psi, Minimum Operating Pressure 15 psi, Overall Length 65.5 mm, Overall Width 50 mm, Overall Height 20 mm, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Standards RoHS Compliant, Weight 128 lb, System of Measurement Metric, Repeatability +/-0.01 mm
