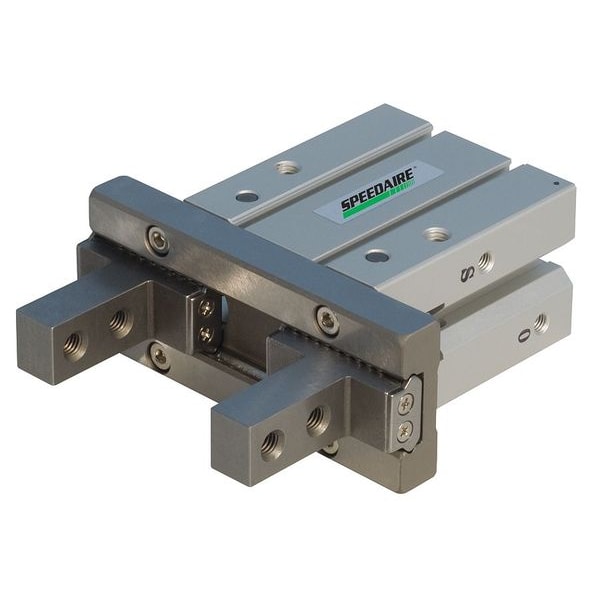

Linear Guide Air Gripper, Parallel
Mfr # MHZ2-25D
Zoro # G1572383
product price: $413.99
/ea
Free Shipping & Returns
Key Features
Dimension B
102.7 mm
Closed Width
19.3 mm
Operating Temp. Range
14 to 140 F
Max. Operating Frequency
180 cpm
Internal Holding Force LBF @ 72 PSI
23.38 lbf
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MHZ2-25D
Zoro #
G1572383
UPC #
190735677346
Country of Origin
Japan
Dimensions
Dimension B
102.7 mm
Closed Width
19.3 mm
Open Width
33.3 mm
Width
102.7 mm
Dimension C
33.6 mm
Port Size
M5 x 0.8
Height
33.6 mm
Length
63 mm
Overall Length
63 mm
Overall Height
33.6 mm
Overall Width
102.7 mm
Stroke Length
14 mm
Description
Air Gripper, Series MHZ2, Open Width 33.3 mm, Stroke Length 14 mm, Maximum Operating Pressure 101.5 psi, Minimum Operating Pressure 14.5 psi, Overall Length 63 mm, Overall Width 102.7 mm, Overall Height 33.6 mm, Body Material Aluminum, Finger Material Stainless Steel, Body Material Finish Anodized, System of Measurement Metric
