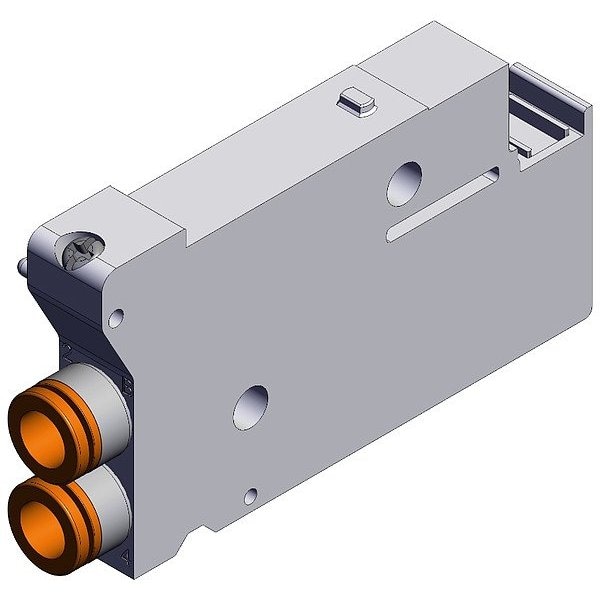

MANIFOLD BLOCK

  • Mfr # VVQC1000-1A-S-N7

  • Zoro # G515854799

product price:
$
26.03
/ea

Key Features

Body Style
Base-Mounted
Overall Height
39 3/8 mm
Body Material
Aluminum
Overall Width
10 1/2 mm
Includes Exhaust Port
Exhaust Port Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VVQC1000-1A-S-N7
Zoro #
G515854799
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
39 3/8 mm
Overall Width
10 1/2 mm
Exhaust Port Connection Size
1/4 in
Valve Port Connection Size
1/4 in
Overall Length
68 7/8 mm
Wire Rope Length
68 7/8 mm
Length
68 7/8 mm

Details

Item
Manifold Block
Body Style
Base-Mounted
Body Material
Aluminum
Includes Exhaust Port
Exhaust Port Included
Operating Temperature - Maximum
50 Degrees C
Compatible Brand
SMC
Compatible Series
VQC1000/2000
Port Location
Side
Valve Port Connection Type
Push-On
Coefficient of Volume (Cv)
0.25
IP Rating
IP67
Valve Port Connection Gender
Female
Exhaust Port Connection Type
Push-On
Includes DIN Rail Clamps
DIN Rails Clamps Not Included
For Media
Air, Inert Gas
Standards
CE Listed, RoHS Compliant, UKCA
End Plate Orientation
Horizontal
Exhaust Port Connection Gender
Female
Operating Temperature - Minimum
-10 Degrees C
Product Type
Manifold Assembly

Description

Manifold Block, Includes Not Applicable
