Shop SMC

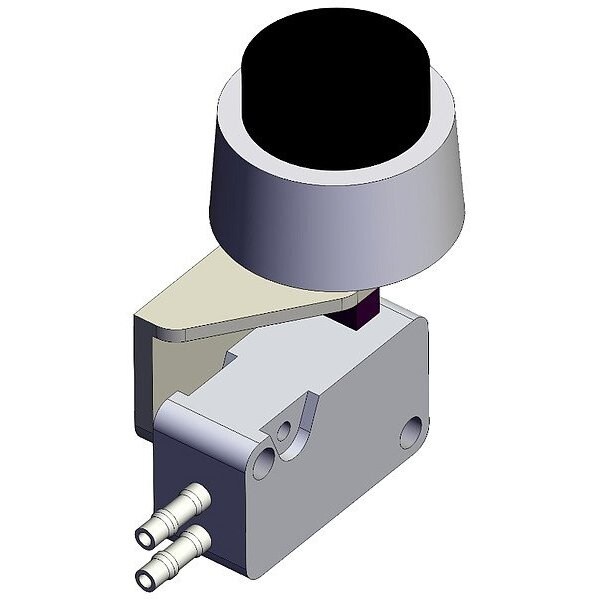

MECHANICAL VALVE

  • Mfr # VM1000-4N-32B

  • Zoro # G915196994

product price:
$
25.49
/ea

Key Features

Series
VM1000
Overall Height
46 3/8 mm
Overall Length
41 3/8 mm
Overall Width
24 mm
Body Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VM1000-4N-32B
Zoro #
G915196994
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
46 3/8 mm
Overall Length
41 3/8 mm
Overall Width
24 mm
Valve Port Connection Size
4 mm
Wire Rope Length
41 3/8 mm
Length
41 3/8 mm

Details

Item
Shuttle Valve
Series
VM1000
Body Material
Aluminum
Seal Material
Buna-N
Operating Temperature - Minimum
-5 Degrees C
Standards
RoHS Compliant
Body Style
Side-Ported
Operating Pressure - Minimum
0 MPa
Operating Pressure - Maximum
0.8 MPa
Number of Ports
3
For Media
Air
Actuator Color
Black
Operating Temperature - Maximum
60 Degrees C
Lubrication
Lubrication Not Required
Coefficient of Volume (Cv)
0.055
Valve Action
Normally Closed
Actuator Type
Button
Valve Type
Poppet
Valve Port Connection Type
Push-On

Description

Shuttle Valve, Body Material Aluminum, Overall Length 41 3/8 mm, Overall Height 46 3/8 mm, Overall Width 24 mm, Series VM1000
