Shop All Pneumatic Condensate Separators
Speedaire

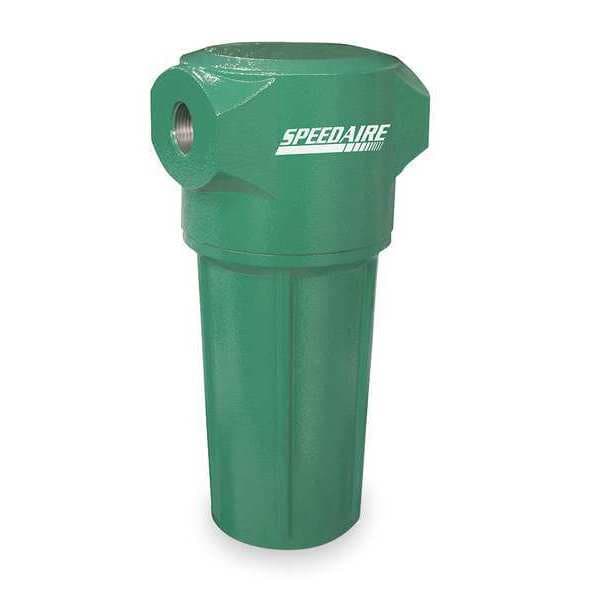

Condensate Separator, 3/4 In NPT, 150 CFM

product price: $231.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • NPT Size 3/4 in
  • Float Type Automatic
  • Max. Flow (CFM) 150
  • Max. Pressure (PSI) 235 psi
  • Max. Temp. 176 Degrees F
See all product information

Product Information

Dimensions

NPT Size 3/4 in
Height (In.) 13.2 in
Dia. 4.8
Overall Length 11 1/2 in
Outside Diameter 4 4/5 in
Overall Depth 13 3/16 in
Air Outlet Size 3/4 in
Air Inlet Size 3/4 in

Details

Item Pneumatic Condensate Separator
Float Type Automatic
Max. Flow (CFM) 150
Max. Pressure (PSI) 235 psi
Max. Temp. 176 Degrees F
Housing Aluminum
Auto Drain Stock Number Included
Differential Pressure (PSI) 0.72
Max. Flow CFM @ 100 PSI 120
Body Material Aluminum
Weight 3 lb
Type Automatic
Maximum Operating Temperature 176 Degrees F
For Substance Type Air; Gas
For Fluid Type Compressed Air, Gas
Filtered Substance Moisture
Minimum Operating Temperature 35 Degrees F
Drain Included Yes
Air Inlet Type NPT
Maximum Operating Pressure 235 psi
Maximum Flow Rate 120 cfm
Air Outlet Type NPT
Drain Type Automatic
Maximum Flow @ 100 psi 120 cfm

Description

Pneumatic Condensate Separator, Air Inlet Size 3/4 in, Air Inlet Type NPT, Maximum Flow @ 100 psi 120 cfm, Maximum Flow Rate 120 cfm, Maximum Operating Pressure 235 psi, Minimum Operating Temperature 35 Degrees F, Type Automatic, Outside Diameter 4 4/5 in, Overall Length 11 1/2 in, Weight 3 lb, Air Outlet Size 3/4 in, Air Outlet Type NPT, Body Material Aluminum, Drain Included Yes, Drain Type Automatic, Filtered Substance Moisture, For Fluid Type Compressed Air, Gas
