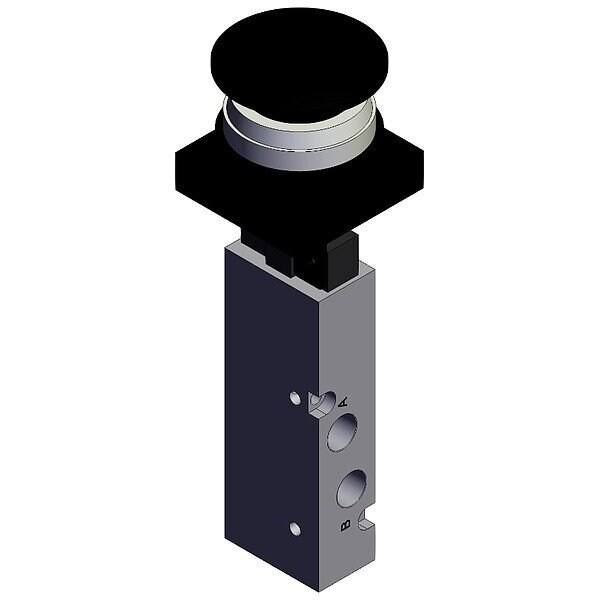

MECHANICAL VALVE
Mfr # VZM450-01-30B
Zoro # G815197008
product price:Â
$
64.15
/ea
Key Features
Series
VZM400
Overall Height
147 mm
Overall Width
40 mm
Body Material
Aluminum
Actuator Type
Button
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- VZM450-01-30B
- Zoro #
- G815197008
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Height
- 147 mm
- Overall Width
- 40 mm
- Valve Port Connection Size
- 1/8 in
Details
- Item
- Shuttle Valve
- Series
- VZM400
- Body Material
- Aluminum
- Actuator Type
- Button
- Coefficient of Volume (Cv)
- 0.55
- Valve Type
- Spool
- Operating Temperature - Maximum
- 60 Degrees C
- Operating Pressure - Minimum
- 0.15 MPa
- Actuator Color
- Black
- Standards
- RoHS Compliant
- Lubrication
- Lubrication Not Required
- Operating Pressure - Maximum
- 1 MPa
- Product Type
- Manual Air Control Valve
- Spool Material
- Stainless Steel
- Operating Temperature - Minimum
- -5 Degrees C
- Number of Ports
- 5
- For Media
- Air, Inert Gas
- Return Action
- Spring Return
- Valve Port Connection Type
- BSPT
Description
Shuttle Valve, Body Material Aluminum, Overall Height 147 mm, Overall Width 40 mm, Series VZM400
