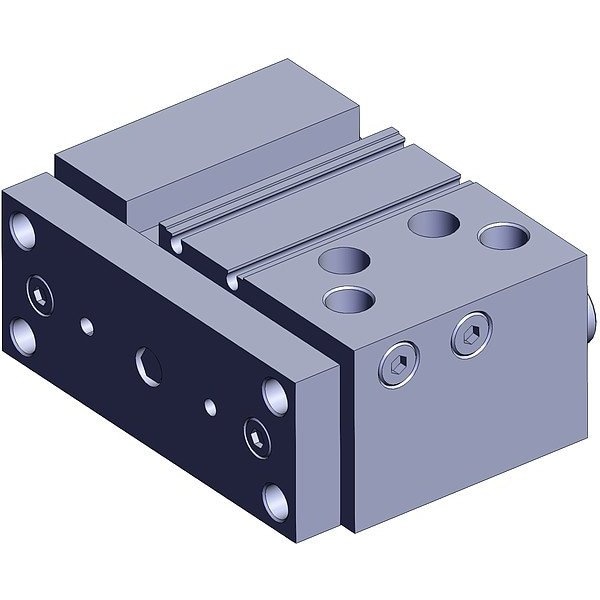

MGPK, Compact Guide Cylinder
Mfr # MGPKAM32-25
Zoro # G314534540
product price:Â
$
327.99
/ea
Free Shipping & Returns
Key Features
Cylinder Action
Double Acting
Cylinder Type
Compact
Accuracy
+/-0.05 Degrees
Maximum Operating Temperature
140 Degrees F
Minimum Operating Pressure
0.1 MPa
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MGPKAM32-25
- Zoro #
- G314534540
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Size
- 32
- Cylinder Bore Diameter
- 32 mm
- Stroke Length
- 25 mm
- Bore Diameter
- 32 mm
- Air Inlet Size
- 45665
Details
- Cylinder Action
- Double Acting
- Item
- Compact Guided Cylinder
- Cylinder Type
- Compact
- Accuracy
- +/-0.05 Degrees
- Maximum Operating Temperature
- 140 Degrees F
- Minimum Operating Pressure
- 0.1 MPa
- Minimum Operating Temperature
- -10 Degrees C
- Series
- MGPK
- Maximum Operating Pressure
- 145 psi
- System of Measurement
- Metric
- Cushion Type
- None
- Maximum Stroke
- 25 mm
- Port Type
- Rc
- Port Location
- Side Ported
- Cylinder Stroke
- 25 mm
- Air Inlet Gender
- Female
- Air Inlet Type
- RC
- Bearing Type
- Slide Bearing
Description
MGPK, Compact Guide Cylinder
