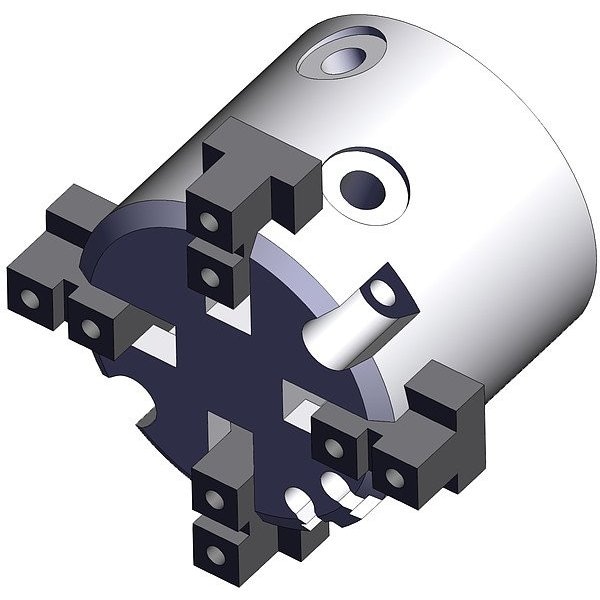

MHS, Parallel Style Air Gripper
Mfr # MHS4-25D
Zoro # G614534257
product price:Â $583.99
/ea
Free Shipping & Returns
Key Features
Open Width
26 mm
System of Measurement
Metric
Stroke Length
6 mm
Finger Material
Carbon Steel
Body Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MHS4-25D
- Zoro #
- G614534257
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Open Width
- 26 mm
- Stroke Length
- 6 mm
- Overall Width
- 42 mm
- Overall Height
- 40 mm
- Overall Length
- 42 mm
- Bore Diameter
- 25 mm
- Wire Rope Length
- 42 mm
Details
- Item
- Parallel Gripper
- System of Measurement
- Metric
- Finger Material
- Carbon Steel
- Body Material
- Aluminum
- Maximum Operating Temperature
- 140 Degrees F
- Maximum Operating Pressure
- 87 psi
- Standards
- RoHS Compliant
- Repeatability
- +/-0.01 mm
- Weight
- 154 g
- Minimum Operating Temperature
- 14 Degrees F
- Minimum Operating Pressure
- 29 psi
- Series
- MHS4
- Body Material Finish
- Hard Anodized
- Seal Material
- Nitrile
Description
Parallel Gripper, Series MHS4, Open Width 26 mm, Stroke Length 6 mm, Maximum Operating Pressure 87 psi, Minimum Operating Pressure 29 psi, Overall Length 42 mm, Overall Width 42 mm, Overall Height 40 mm, Body Material Aluminum, Finger Material Carbon Steel, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature 14 Degrees F, Standards RoHS Compliant, Weight 154 g, Body Material Finish Hard Anodized, System of Measurement Metric, Seal Material Nitrile, Repeatability +/-0.01 mm
