Shop All Desiccant Dryers
Speedaire

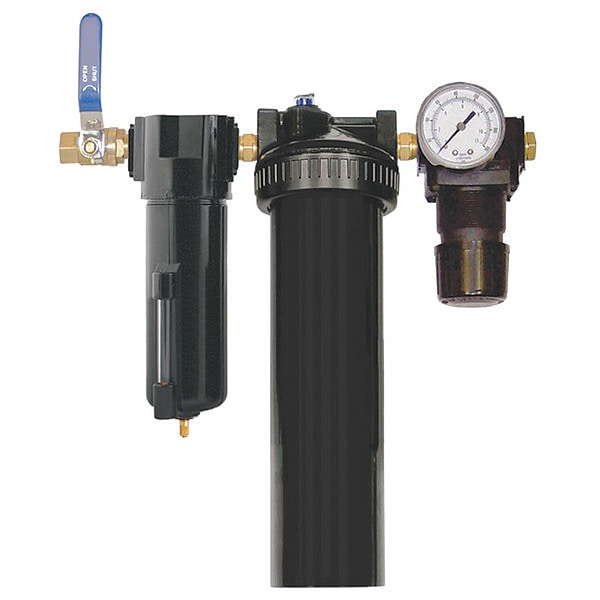

Drying System w/Cartridge, 35 scfm

product price: $315.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Dew Point (Deg. F) -40
  • CFM 35
  • Max. Operating PSI 125
  • (M)NPT Outlet (In.) 1/2 in
  • (F)NPT Inlet (In.) 1/2 in
See all product information

Product Information

Dimensions

Overall Height 16 1/8 in
Overall Width 12 1/4 in
Overall Depth 5 1/8 in
Air Inlet Size 1/2 in
Air Outlet Size 1/2 in

Details

Item Deliquescent Compressed Air Dryer
Dew Point (Deg. F) -40
CFM 35
Max. Operating PSI 125
(M)NPT Outlet (In.) 1/2 in
(F)NPT Inlet (In.) 1/2 in
Desiccant Material Deliquescent
Inlet/Outlet NPTF (In.) 1/2 in
Max. Operating Temp. (F) 120 Degrees F
Max. Pressure 250 psi
Max. Inlet Temp. 120 Degrees F
Max. Ambient Temp. 120 Degrees F
Features Patent Indicator
Finish Enamel
Max. Air Compressor HP 10 hp
Dew Point -40 Degrees F
Includes Gauge, Shut-Off Valve
Bowl Material Metal
Number of Air Inlets 1
Bowl Capacity 1 lb
Maximum Flow Rate 35 cfm
Air Inlet Type NPT
Total Air Capacity 0.062 cu ft
For Maximum Compressor Output Power 10 hp
Number of Air Outlets 1
Maximum Flow @ 100 psi 35 cfm
Body Material Metal
Maximum Operating Temperature 120 Degrees F
Air Inlet Gender Female
Maximum Operating Pressure 125 psi
Air Outlet Gender Female
Air Outlet Type NPT

Description

Deliquescent Compressed Air Dryer, Air Inlet Size 1/2 in, Air Inlet Type NPT, Bowl Capacity 1 lb, Dew Point -40 Degrees F, Maximum Flow Rate 35 cfm, Maximum Operating Pressure 125 psi, Maximum Operating Temperature 120 Degrees F, Overall Depth 5 1/8 in, Overall Height 16 1/8 in, Overall Width 12 1/4 in, Total Air Capacity 0.062 cu ft, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/2 in, Air Outlet Type NPT, Body Material Metal, Bowl Material Metal
