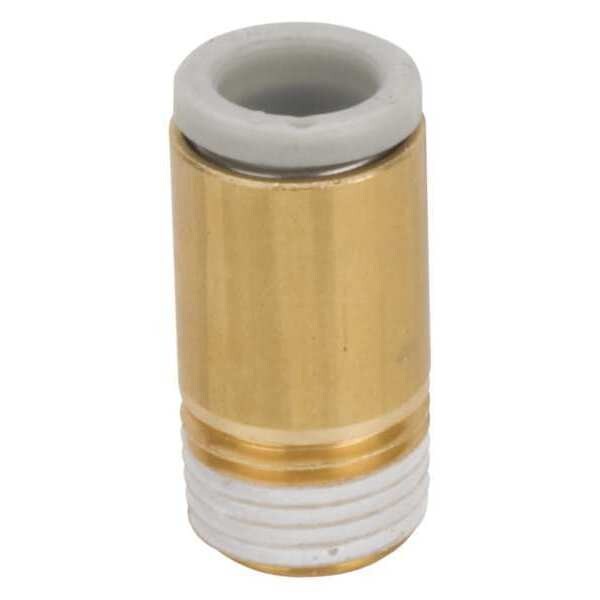

Push-Fit Adapter Fitting, Push-to-Connect x MBSPT, 10mm Tube OD, 1/8 in Pipe Size, Plastic
Mfr # KQ2S10-01AS
Zoro # G4999617
product price:
$
3.15
/ea
Key Features
Material
Plastic
Max. Pressure
145 psi
Connection Type
Push-to-Connect x MBSPT
Tube Size
10mm
Standards
JIS B0203, RoHS
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KQ2S10-01AS
- Zoro #
- G4999617
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Tube Size
- 10mm
- Pipe Size
- 1/8 in
- Hex Head Size
- 5 mm
- Overall Length
- 24 5/16 mm
- Fitting Side A Tube Outer Diameter
- 10 mm
- Fitting Side B Pipe Size
- 1/8 in
- Fitting Thread Size
- 1/8"
- Fitting Side 1 Tube Outer Diameter
- 10 mm
- Fitting Side 2 Pipe Size
- 1/8 in
- Wire Rope Length
- 24 5/16 mm
- Length
- 24 5/16 mm
Description
The SMC - KQ2S10-01AS is part of the family of Push-On Hose Fittings. These fittings play a crucial role in various industrial and commercial setups, simplifying the connection of hoses to numerous tools or equipment. This specific model features a compact design, making it especially suitable for applications where space is limited.
Key Features:
- Part of the KQ2 series.
- Pneumatic connection type – suitable for systems driven by compressed gas or air.
- Body material is brass, offering durability and resistance to corrosion.
- Fitting size of 10mm – relates to the diameter of the opening that the hose is pushed onto, indicating compatibility with different hose sizes.
- Male adapter type - has a male end that fits into a female counterpart for safe attachment.
- Applicable tubing material includes polyurethane and Nylon.
- Package quantity of 10.
- Operating pressure range from -100kPa to 1MPa.
- Operating temperature range from -5 to 60 degrees Celsius.
