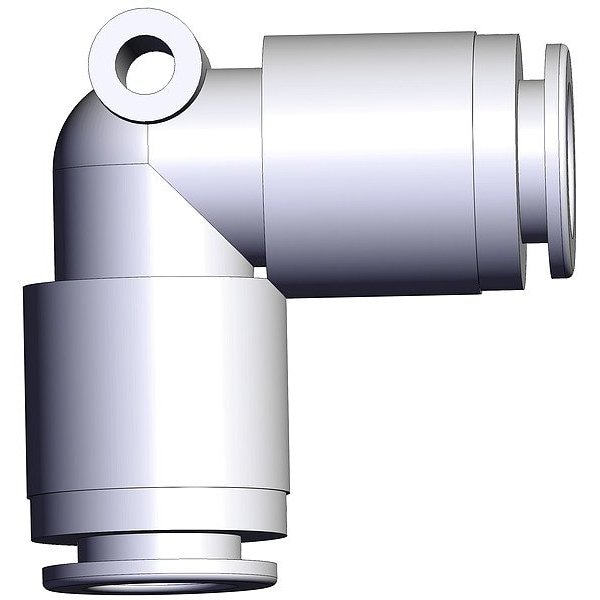

Push-Fit Elbow, Elbow
Mfr # KPL10-00
Zoro # G016245638
product price:Â $8.59
/ea
Sold in multiples of 2 for $17.18
Key Features
Standards
RoHS
Application
Medical, Vacuum
Fitting Shape
Elbow
Fitting Side 1 Tube Outer Diameter
10 mm
Operating Temperature - Minimum
-4 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
KPL10-00
Zoro #
G016245638
UPC #
-
Country of Origin
Singapore
Dimensions
Fitting Side 1 Tube Outer Diameter
10 mm
Center-to-End 2 Length
28 13/32 mm
Center-to-End 1 Length
28 13/32 mm
Overall Length
18 1/2 mm
Fitting Side 2 Tube Outer Diameter
10 mm
Details
Item
Fitting, Union Elbow
Standards
RoHS
Application
Medical, Vacuum
Fitting Shape
Elbow
Operating Temperature - Minimum
-4 Degrees F
Connector Type
Union
Operating Temperature - Maximum
140 Degrees F
Operating Pressure - Maximum
1 MPa
Compatible Tube Material
PFA, Polyolefin, Polyurethane
For Media Type
Air, Gases, Non-Potable Water
Fitting Material
Polypropylene
Series
KP
Fitting Side 1 Connection Type
Push-to-Connect
Release Type
Button
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Color
White
Fitting Side 2 Connection Type
Push-to-Connect
Fitting Features
Rigid
Description
Push-Fit Elbow, Application Medical, Vacuum, Fitting Material Polypropylene, Fitting Thread Size Not Applicable, Material Grade Not Applicable, Color White, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 18 1/2 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material PFA, Polyolefin, Polyurethane, System of Measurement Not Applicable
