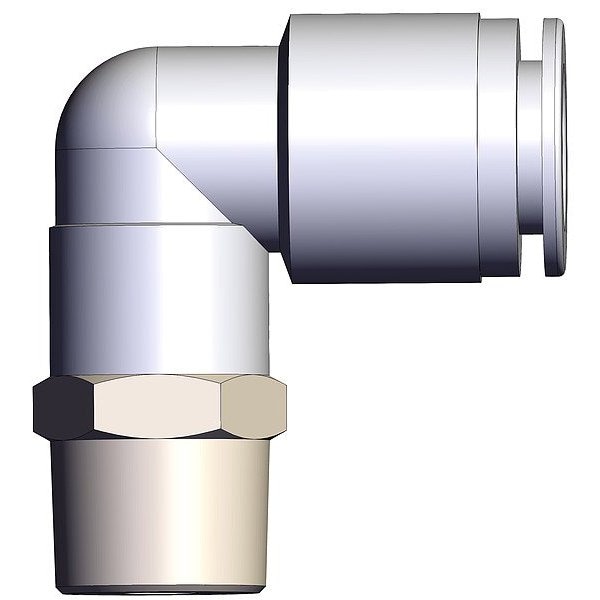

Push-Fit Elbow, Elbow
Mfr # KPL12-03
Zoro # G916330069
product price:Â $6.49
/ea
Sold in multiples of 5 for $32.45
Key Features
Application
Medical, Vacuum
Standards
RoHS
Fitting Material
Polypropylene
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 1 Tube Outer Diameter
12 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
KPL12-03
Zoro #
G916330069
UPC #
-
Country of Origin
Japan
Dimensions
Fitting Side 1 Tube Outer Diameter
12 mm
Center-to-End 2 Length
34 5/16 mm
Center-to-End 1 Length
30 13/32 mm
Fitting Thread Size
3/8
Fitting Side 2 Pipe Size
3/8 in
Overall Length
17 mm
Details
Item
Fitting, Male Elbow
Application
Medical, Vacuum
Standards
RoHS
Fitting Material
Polypropylene
Fitting Side 1 Connection Type
Push-to-Connect
Operating Temperature - Minimum
-4 Degrees F
Connector Type
Union
Operating Pressure - Maximum
1 MPa
Series
KP
Compatible Tube Material
PFA, Polyolefin, Polyurethane
Operating Temperature - Maximum
140 Degrees F
Release Type
Button
Fitting Shape
Elbow
For Media Type
Air, Gases, Non-Potable Water
Fitting Side 2 Connection Type
BSPT
Fitting Features
Swivel
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Color
White
Description
Push-Fit Elbow, Application Medical, Vacuum, Fitting Material Polypropylene, Fitting Thread Size 3/8, Material Grade Not Applicable, Color White, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 17 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material PFA, Polyolefin, Polyurethane, System of Measurement Not Applicable
