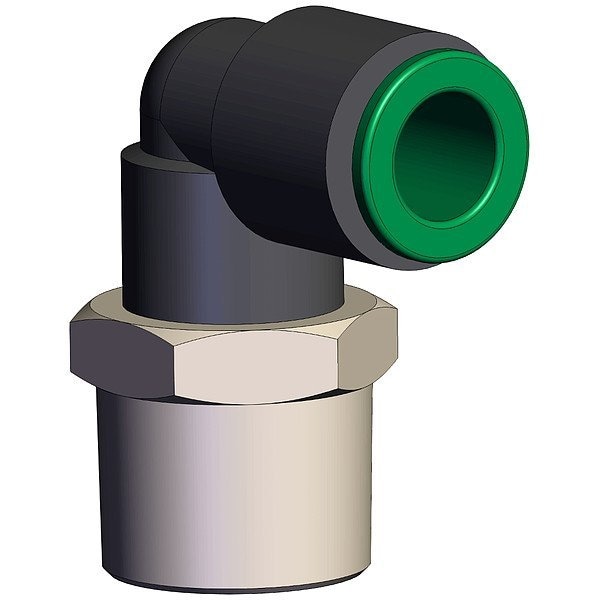

Push-Fit Elbow, Elbow
- Mfr # KRL10-04S
- Zoro # G216245759
product price:Â
$
6.49
/ea
Sold in multiples of 2 for
$12.98
Key Features
Standards
RoHS
Application
Vacuum
Fitting Shape
Elbow
Color
Black
Series
KR
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- KRL10-04S
- Zoro #
- G216245759
- UPC #
- -
- Country of Origin
- Singapore
- Item
- Push-Fit Elbow
- Standards
- RoHS
- Application
- Vacuum
- Fitting Shape
- Elbow
- Color
- Black
- Series
- KR
- Fitting Material
- Polybutylene
- Resistance Properties
- Flame-Resistant
- Compatible Tube Material
- Polyurethane, Nylon
- Operating Pressure - Maximum
- 1 MPa
- For Media Type
- Compressed Air, Non-Potable Water
- Operating Temperature - Maximum
- 140 Degrees F
- Release Type
- Collet
- Fitting Side 1 Connection Type
- Push-to-Connect
- Operating Temperature - Minimum
- 23 Degrees F
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Included
- Fitting Side 2 Connection Type
- BSPT
- Connector Type
- Adapter
- Fitting Features
- Swivel
- Wire Color
- Black
Dimensions
- Center-to-End 2 Length
- 36 mm
- Center-to-End 1 Length
- 26 1/2 mm
- Fitting Thread Size
- 1/2"
- Fitting Side 1 Tube Outer Diameter
- 10 mm
- Overall Length
- 22 mm
- Fitting Side 2 Pipe Size
- 1/2 in
- Wire Rope Length
- 22 mm
- Length
- 22 mm
Description
Push-Fit Elbow, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size 1/2 In., Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Overall Length 22 mm, Release Type Collet, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material Polyurethane, Nylon, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
