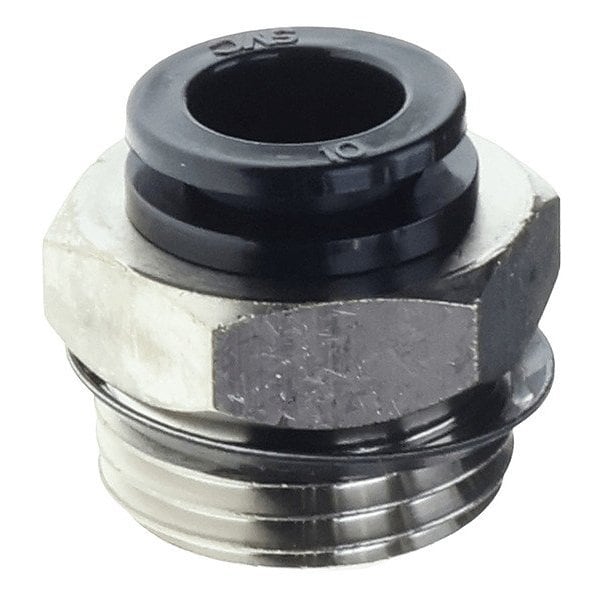

Push-Fit Fitting, Straight
Mfr # KAH10-U04
Zoro # G316330041
product price:Â $7.19
/ea
Sold in multiples of 5 for $35.95
Key Features
Standards
RoHS
Color
Black
Fitting Material
Polybutylene
Overall Length
14 mm
Application
Vacuum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
KAH10-U04
Zoro #
G316330041
UPC #
-
Country of Origin
Japan
Dimensions
Overall Length
14 mm
Fitting Thread Size
1/2"
Fitting Side 1 Tube Outer Diameter
10 mm
Fitting Side 2 Pipe Size
1/2 in
Details
Item
Push-Fit Fitting
Standards
RoHS
Color
Black
Fitting Material
Polybutylene
Application
Vacuum
Operating Temperature - Maximum
104 Degrees F
Connector Type
Union
Series
KA
Operating Temperature - Minimum
32 Degrees F
Resistance Properties
Flame-Resistant
Compatible Tube Material
PFA, Polyolefin, Polyurethane
For Media Type
Air
Release Type
Button
Operating Pressure - Maximum
1 MPa
Fitting Shape
Straight
Finish
Nickel-Plated
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
UNF
Fitting Features
Rigid
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Description
Push-Fit Fitting, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size 1/2 In., Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 14 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material PFA, Polyolefin, Polyurethane, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
