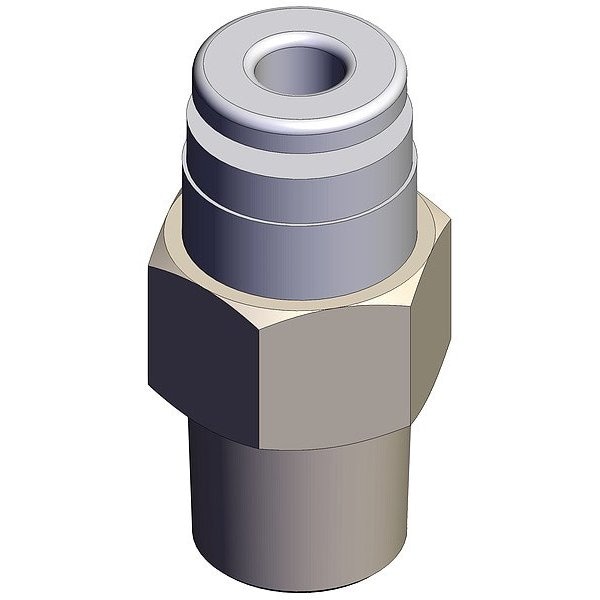

Push-Fit Fitting, Straight
Mfr # KPH04-01
Zoro # G316245710
product price:Â $3.85
/ea
Sold in multiples of 10 for $38.50
Key Features
Standards
RoHS
Application
Medical, Vacuum
Fitting Shape
Straight
Overall Length
12 mm
Fitting Thread Size
1/8
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KPH04-01
- Zoro #
- G316245710
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Overall Length
- 12 mm
- Fitting Thread Size
- 1/8
- Fitting Side 1 Tube Outer Diameter
- 4 mm
- Fitting Side 2 Pipe Size
- 1/8 in
- Wire Rope Length
- 12 mm
Details
- Item
- Fitting, Male Connector
- Standards
- RoHS
- Application
- Medical, Vacuum
- Fitting Shape
- Straight
- Operating Pressure - Maximum
- 1 MPa
- Fitting Material
- Polypropylene
- Connector Type
- Union
- Operating Temperature - Minimum
- -4 Degrees F
- Operating Temperature - Maximum
- 140 Degrees F
- Fitting Side 1 Connection Type
- Push-to-Connect
- Compatible Tube Material
- PFA, Polyolefin, Polyurethane
- For Media Type
- Air, Gases, Non-Potable Water
- Release Type
- Button
- Series
- KP
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Fitting Side 2 Connection Type
- BSPT
- Fitting Features
- Rigid
- Color
- White
Description
Push-Fit Fitting, Application Medical, Vacuum, Fitting Material Polypropylene, Fitting Thread Size 1/8, Material Grade Not Applicable, Color White, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 12 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material PFA, Polyolefin, Polyurethane, System of Measurement Not Applicable
