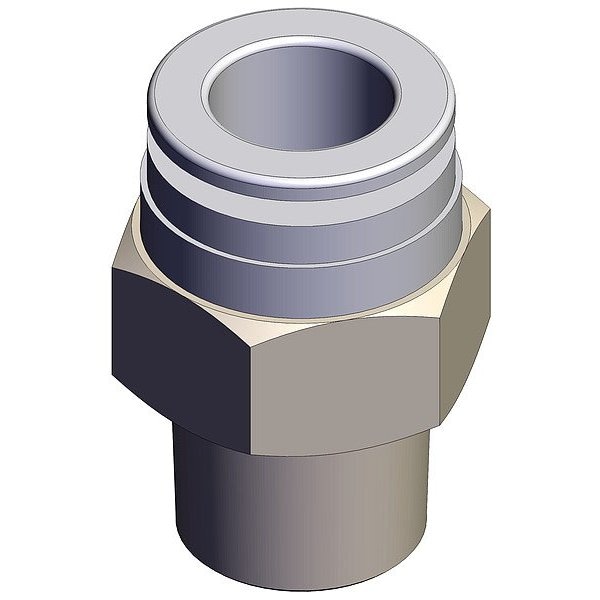

Push-Fit Fitting, Straight
Mfr # KPH12-03
Zoro # G716330047
product price:Â
$
4.69
/ea
Sold in multiples of 5 for $23.45
Key Features
Fitting Material
Polypropylene
Application
Medical, Vacuum
Overall Length
22 mm
Standards
RoHS
Fitting Side 1 Tube Outer Diameter
12 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KPH12-03
- Zoro #
- G716330047
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Length
- 22 mm
- Fitting Side 1 Tube Outer Diameter
- 12 mm
- Fitting Thread Size
- 3/8
- Fitting Side 2 Pipe Size
- 3/8 in
- Wire Rope Length
- 22 mm
Details
- Item
- Push-Fit Fitting
- Fitting Material
- Polypropylene
- Application
- Medical, Vacuum
- Standards
- RoHS
- Operating Temperature - Minimum
- -4 Degrees F
- Operating Pressure - Maximum
- 1 MPa
- Release Type
- Button
- Operating Temperature - Maximum
- 140 Degrees F
- Compatible Tube Material
- PFA, Polyolefin, Polyurethane
- Series
- KP
- Fitting Side 1 Connection Type
- Push-to-Connect
- Fitting Shape
- Straight
- For Media Type
- Air, Gases, Non-Potable Water
- Connector Type
- Union
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Fitting Features
- Rigid
- Color
- White
- Fitting Side 2 Connection Type
- BSPT
Description
Push-Fit Fitting, Application Medical, Vacuum, Fitting Material Polypropylene, Fitting Thread Size 3/8, Material Grade Not Applicable, Color White, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 22 mm, Release Type Button, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material PFA, Polyolefin, Polyurethane, System of Measurement Not Applicable
