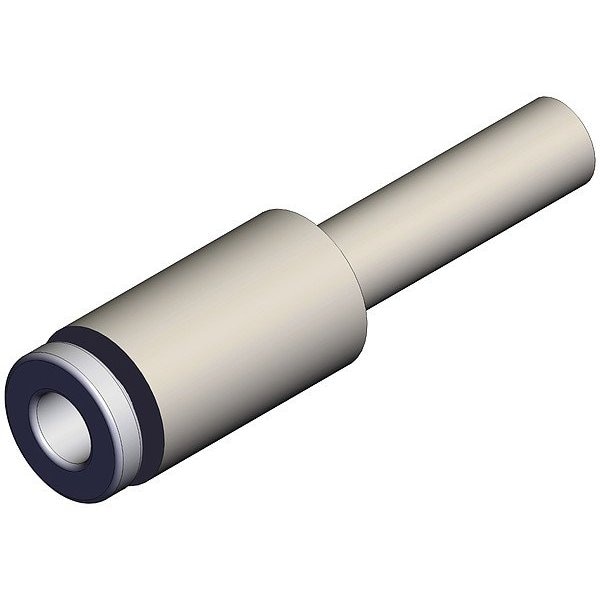

Push-Fit Fitting, Straight
Mfr # KQ2R23-04A
Zoro # G816330107
product price:Â $2.15
/ea
Sold in multiples of 10 for $21.50
Key Features
Standards
RoHS
Overall Length
28 19/32 mm
Fitting Material
Polybutylene
Application
Vacuum
Operating Temperature - Minimum
23 Degrees F
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
KQ2R23-04A
Zoro #
G816330107
UPC #
-
Country of Origin
Singapore
Dimensions
Overall Length
28 19/32 mm
Fitting Side 1 Tube Outer Diameter
3 3/16 mm
Center-to-End 1 Length
15 5/16 mm
Fitting Side 2 Tube Outer Diameter
4 mm
Details
Item
Push-Fit Fitting
Standards
RoHS
Fitting Material
Polybutylene
Application
Vacuum
Operating Temperature - Minimum
23 Degrees F
Connector Type
Reducer
Operating Pressure - Maximum
1 MPa
Compatible Tube Material
FEP, Nylon, PFA, Polyurethane
Release Type
Collet
Operating Temperature - Maximum
140 Degrees F
Series
KQ2
For Media Type
Air
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
Push-to-Connect
Fitting Features
Rigid
Color
White
Fitting Shape
Straight
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Description
Push-Fit Fitting, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size Not Applicable, Material Grade Not Applicable, Color White, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 28 19/32 mm, Release Type Collet, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material FEP, Nylon, PFA, Polyurethane, System of Measurement Not Applicable
