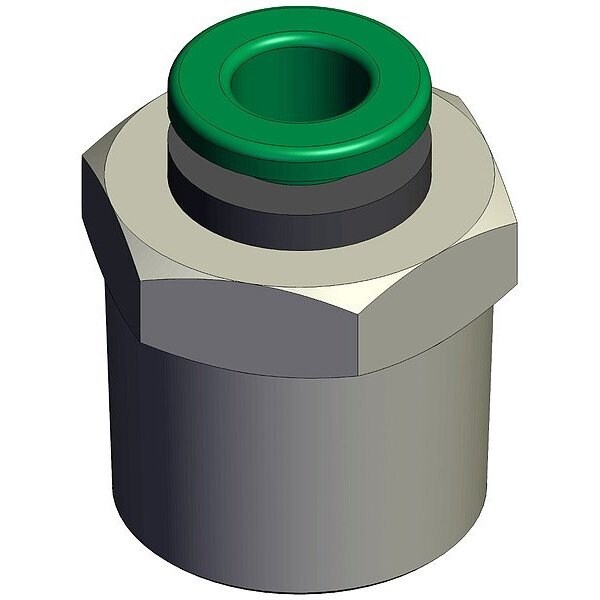

Push-Fit Fitting, Straight
Mfr # KRH06-03S
Zoro # G816330084
product price:Â
$
3.75
/ea
Sold in multiples of 10 for $37.50
Key Features
Overall Length
17 mm
Application
Vacuum
Standards
RoHS
Color
Black
Fitting Material
Polybutylene
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KRH06-03S
- Zoro #
- G816330084
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Overall Length
- 17 mm
- Fitting Side 1 Tube Outer Diameter
- 6 mm
- Fitting Thread Size
- 3/8"
- Fitting Side 2 Pipe Size
- 3/8 in
- Wire Rope Length
- 17 mm
Details
- Item
- Push-Fit Fitting
- Application
- Vacuum
- Standards
- RoHS
- Color
- Black
- Fitting Material
- Polybutylene
- Operating Temperature - Maximum
- 140 Degrees F
- Operating Pressure - Maximum
- 1 MPa
- Operating Temperature - Minimum
- 23 Degrees F
- Compatible Tube Material
- Polyurethane, Nylon
- Fitting Shape
- Straight
- Release Type
- Collet
- Fitting Side 1 Connection Type
- Push-to-Connect
- Resistance Properties
- Flame-Resistant
- For Media Type
- Compressed Air, Non-Potable Water
- Series
- KR
- Fitting Side 2 Connection Type
- BSPT
- Fitting Features
- Rigid
- Connector Type
- Adapter
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Included
Description
Push-Fit Fitting, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size 3/8 In., Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Overall Length 17 mm, Release Type Collet, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material Polyurethane, Nylon, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
