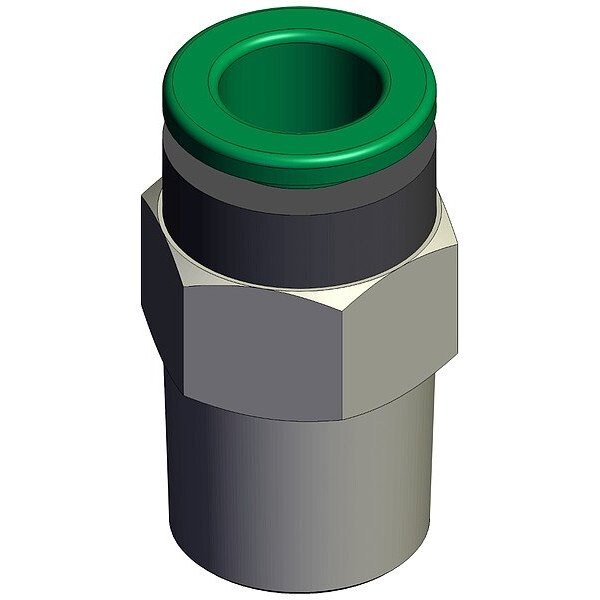

Push-Fit Fitting, Straight
Mfr # KRH08-02S
Zoro # G516245862
product price:Â $3.85
/ea
Sold in multiples of 3 for $11.55
Key Features
Standards
RoHS
Application
Vacuum
Fitting Shape
Straight
Color
Black
Overall Length
14 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KRH08-02S
- Zoro #
- G516245862
- UPC #
- -
- Country of Origin
- Singapore
Dimensions
- Overall Length
- 14 mm
- Fitting Thread Size
- 1/4"
- Fitting Side 1 Tube Outer Diameter
- 8 mm
- Fitting Side 2 Pipe Size
- 1/4 in
Details
- Item
- Fitting, Male Connector
- Standards
- RoHS
- Application
- Vacuum
- Fitting Shape
- Straight
- Color
- Black
- Operating Temperature - Minimum
- 23 Degrees F
- Compatible Tube Material
- Polyurethane, Nylon
- Release Type
- Collet
- Fitting Material
- Polybutylene
- Series
- KR
- Operating Temperature - Maximum
- 140 Degrees F
- Resistance Properties
- Flame-Resistant
- Fitting Side 1 Connection Type
- Push-to-Connect
- For Media Type
- Compressed Air, Non-Potable Water
- Operating Pressure - Maximum
- 1 MPa
- Connector Type
- Adapter
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Included
- Fitting Features
- Rigid
- Fitting Side 2 Connection Type
- BSPT
Description
Push-Fit Fitting, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size 1/4 In., Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Overall Length 14 mm, Release Type Collet, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material Polyurethane, Nylon, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
