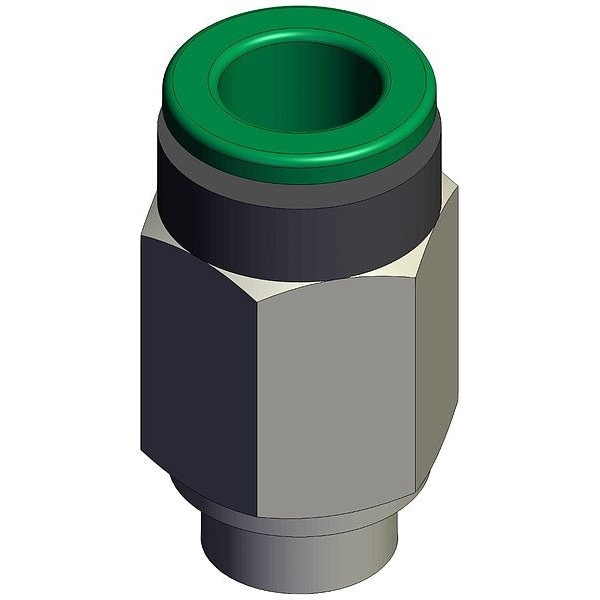

Push-Fit Fitting, Straight
Mfr # KRH08-G01
Zoro # G016330099
product price:Â
$
5.19
/ea
Sold in multiples of 10 for $51.90
Key Features
Color
Black
Standards
RoHS
Fitting Material
Polybutylene
Application
Vacuum
Fitting Side 1 Connection Type
Push-to-Connect
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KRH08-G01
- Zoro #
- G016330099
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Fitting Side 1 Tube Outer Diameter
- 8 mm
- Overall Length
- 27 29/32 mm
- Fitting Side 2 Pipe Size
- 1/8 in
- Fitting Thread Size
- 1/8
- Wire Rope Length
- 27 29/32 mm
Details
- Item
- Fitting, Male Connector
- Color
- Black
- Standards
- RoHS
- Fitting Material
- Polybutylene
- Application
- Vacuum
- Fitting Side 1 Connection Type
- Push-to-Connect
- Release Type
- Collet
- Operating Temperature - Maximum
- 140 Degrees F
- Operating Pressure - Maximum
- 1 MPa
- Compatible Tube Material
- Polyurethane, Nylon
- Operating Temperature - Minimum
- 23 Degrees F
- Fitting Shape
- Straight
- Series
- KR
- For Media Type
- Compressed Air, Non-Potable Water
- Resistance Properties
- Flame-Resistant
- Fitting Side 2 Connection Type
- BSPP
- Connector Type
- Adapter
- Includes Pre-Applied Thread Sealant
- Pre-Applied Thread Sealant Not Included
- Fitting Features
- Rigid
Description
Push-Fit Fitting, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size 1/8, Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 27 29/32 mm, Release Type Collet, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material Polyurethane, Nylon, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
