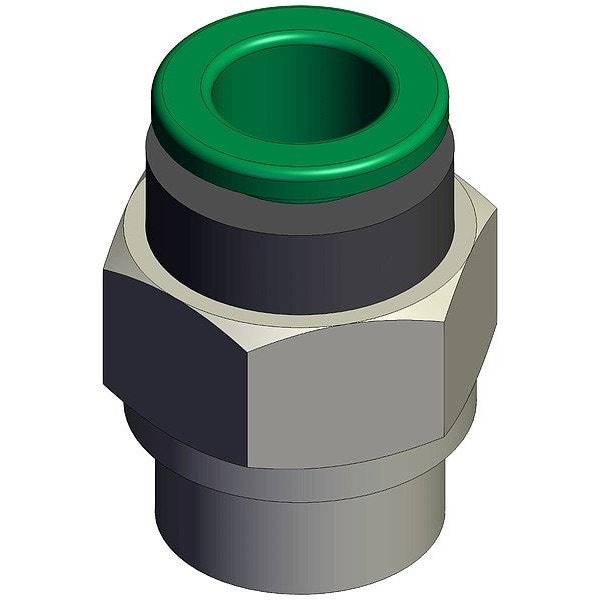

Push-Fit Fitting, Straight
Mfr # KRH08-G02
Zoro # G116245873
product price:Â $3.29
/ea
Sold in multiples of 4 for $13.16
Key Features
Standards
RoHS
Application
Vacuum
Fitting Shape
Straight
Color
Black
Series
KR
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
KRH08-G02
Zoro #
G116245873
UPC #
-
Country of Origin
Singapore
Dimensions
Fitting Side 1 Tube Outer Diameter
8 mm
Fitting Side 2 Pipe Size
1/4 in
Overall Length
23 29/32 mm
Fitting Thread Size
1/4"
Details
Item
Push-Fit Fitting
Standards
RoHS
Application
Vacuum
Fitting Shape
Straight
Color
Black
Series
KR
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Material
Polybutylene
Release Type
Collet
Compatible Tube Material
Polyurethane, Nylon
Resistance Properties
Flame-Resistant
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
23 Degrees F
For Media Type
Compressed Air, Non-Potable Water
Operating Pressure - Maximum
1 MPa
Fitting Features
Rigid
Connector Type
Adapter
Fitting Side 2 Connection Type
BSPP
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Description
Push-Fit Fitting, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size 1/4 In., Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 23 29/32 mm, Release Type Collet, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material Polyurethane, Nylon, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
