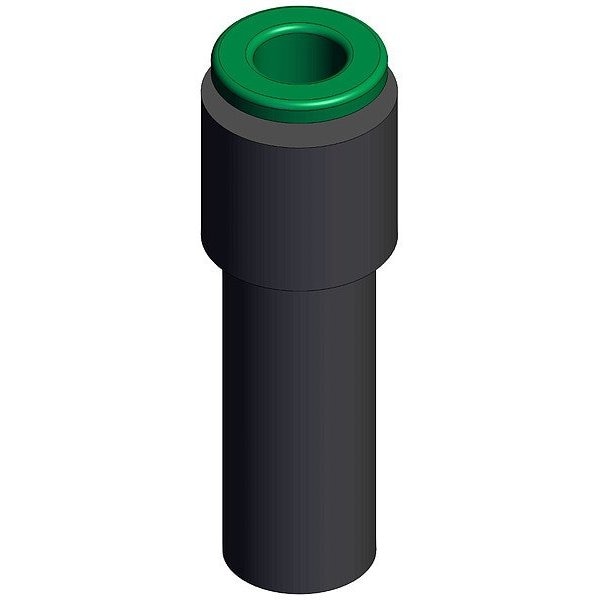

Push-Fit Fitting, Straight
Mfr # KRR06-10
Zoro # G716245761
product price:Â $3.99
/ea
Sold in multiples of 3 for $11.97
Key Features
Standards
RoHS
Application
Vacuum
Overall Length
12 13/16 mm
Color
Black
Fitting Side 1 Connection Type
Push-to-Connect
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
KRR06-10
Zoro #
G716245761
UPC #
-
Country of Origin
Singapore
Dimensions
Overall Length
12 13/16 mm
Fitting Side 1 Tube Outer Diameter
6 mm
Fitting Thread Size
10
Center-to-End 1 Length
18 1/2 mm
Fitting Side 2 Tube Outer Diameter
10 mm
Details
Item
Fitting, Plug-In Reducer
Standards
RoHS
Application
Vacuum
Color
Black
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Material
Polybutylene
Compatible Tube Material
Polyurethane, Nylon
Operating Temperature - Maximum
140 Degrees F
Connector Type
Reducer
Release Type
Collet
Operating Pressure - Maximum
1 MPa
Operating Temperature - Minimum
23 Degrees F
For Media Type
Compressed Air, Non-Potable Water
Resistance Properties
Flame-Resistant
Series
KR
Fitting Shape
Straight
Fitting Features
Rigid
Fitting Side 2 Connection Type
Tube
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Description
Push-Fit Fitting, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size 10, Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 12 13/16 mm, Release Type Collet, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material Polyurethane, Nylon, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
