Gast

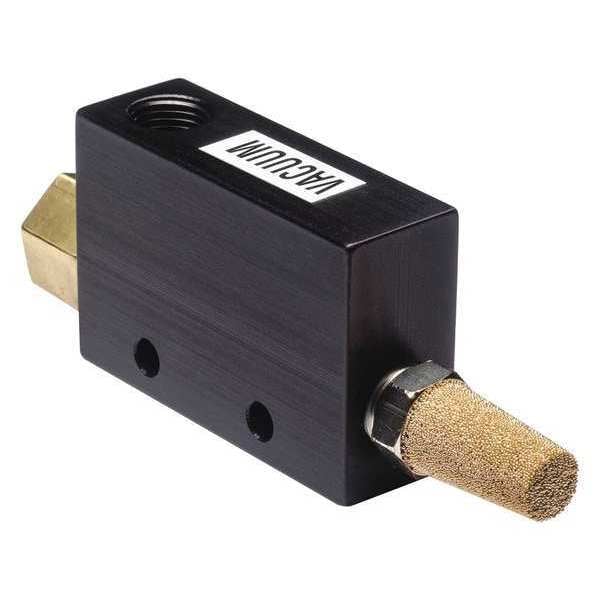

Vacuum Ejector, Single Unit, 30 to 75 PSI

product price: $136.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pressure Port Size 1/8 in
  • Vacuum Port Size 3/8 in
  • Exhaust Type Muffler
  • Vacuum Flow Rate 113.0 lpm
  • Supply Pressure Range 30 to 75 psi
See all product information

Product Information

Dimensions

Pressure Port Size 1/8 in
Vacuum Port Size 3/8 in
Orifice Dia. 2.0 mm
Length 208 mm
Width 43 mm
Height 38 mm
Overall Width 43 mm
Overall Length 208 mm

Details

Exhaust Type Muffler
Vacuum Flow Rate 113.0 lpm
Item Vacuum Ejector
Supply Pressure Range 30 to 75 psi
Vacuum Pressure Range 0 to -91 KPA
Includes Muffler
Temp. Range 0 Degrees to 52 Degrees C
Weight 340 g
Ejector Type Single Stage Venturi
Vacuum Pressure @ 40 PSI -61 kPa
Vacuum Pressure @ 75 PSI -91 kPa
Maximum Supply Pressure 75 psi
Vacuum Port Gender Female
Maximum Operating Temperature 52 Degrees C
Vacuum Port Type NPT
Maximum Flow Rate 113 lpm
Pressure Port Type NPT
Pressure Port Gender Female

Description

Item Vacuum Ejector, Includes Muffler, Maximum Flow Rate 113 lpm, Maximum Operating Temperature 52 Degrees C, Maximum Supply Pressure 75 psi, Overall Length 208 mm, Overall Width 43 mm, Pressure Port Gender Female, Pressure Port Size 1/8 in, Pressure Port Type NPT, Vacuum Port Gender Female, Vacuum Port Size 3/8 in, Vacuum Port Type NPT, Vacuum Pressure @ 40 PSI -61 kPa, Vacuum Pressure @ 75 PSI -91 kPa, Weight 340 g
