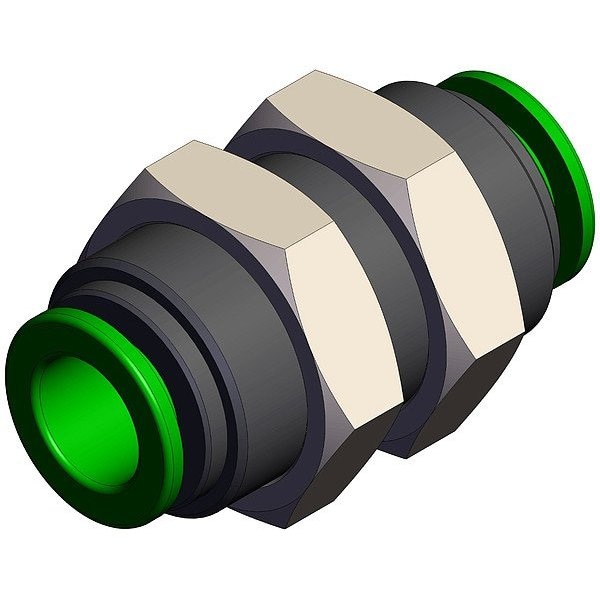

Push-Fit Union, Union
Mfr # KRE10-00
Zoro # G016245812
product price:Â $11.29
/eaKey Features
Standards
RoHS
Application
Vacuum
Fitting Shape
Union
Color
Black
Overall Length
24 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
KRE10-00
Zoro #
G016245812
UPC #
-
Country of Origin
Singapore
Dimensions
Overall Length
24 mm
Fitting Thread Size
M20 x 1
Center-to-End 1 Length
21 mm
Fitting Side 1 Tube Outer Diameter
10 mm
Fitting Side 2 Tube Outer Diameter
10 mm
Details
Item
Fitting, Bulkhead Union
Standards
RoHS
Application
Vacuum
Fitting Shape
Union
Color
Black
Compatible Tube Material
Polyurethane, Nylon
Fitting Side 1 Connection Type
Push-to-Connect
Resistance Properties
Flame-Resistant
For Media Type
Compressed Air, Non-Potable Water
Operating Temperature - Minimum
23 Degrees F
Fitting Material
Polybutylene
Connector Type
Union
Operating Temperature - Maximum
140 Degrees F
Series
KR
Release Type
Collet
Operating Pressure - Maximum
1 MPa
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Side 2 Connection Type
Push-to-Connect
Fitting Features
Rigid
Description
Push-Fit Union, Application Vacuum, Fitting Material Polybutylene, Fitting Thread Size M20 x 1, Material Grade Not Applicable, Color Black, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Overall Length 24 mm, Release Type Collet, Standards RoHS, Compatible Copper Tube Size Not Applicable, Compatible Copper Tube Type Not Applicable, Compatible Tube Material Polyurethane, Nylon, Resistance Properties Flame-Resistant, System of Measurement Not Applicable
