Shop SMC

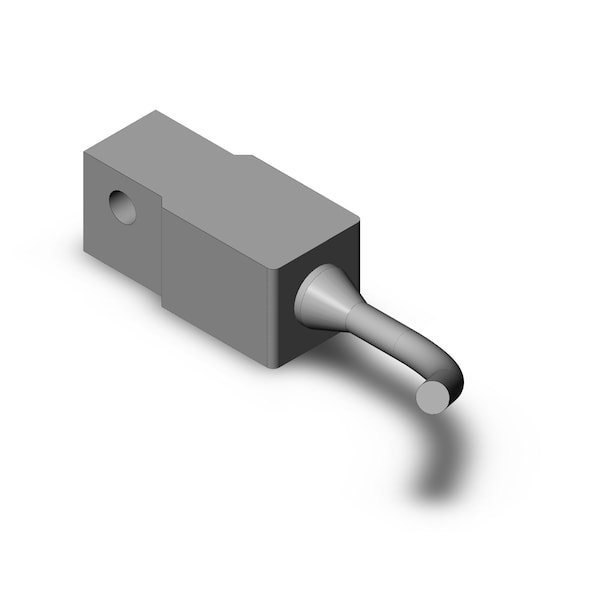

Reed 2 Wire IPC Band, 24VDC, 200VAC, L 3m

  • Mfr # D-B64L

  • Zoro # G1276188

product price:  $22.29
/ea

Key Features

For Bore Dia.
20 to 100 mm
Switching Voltage
100 V AC, 200 V AC, 24 V AC/DC or less
Enclosure Type
IP67
Description/Special Features
Band, Rail, Tie-Rod and Direct Mounting Styles, Built-In Off-Delay Timer (200 ms), Grommet, Connector, Terminal Conduit, Din Terminal Electrical Entry, Heat Resistant, Magnetic Field Resistant, Reed Type Auto Switches, Solid State Switch
Lead Length (Ft.)
3 m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D-B64L
Zoro #
G1276188
UPC #
-
Country of Origin
Japan

Dimensions

For Bore Dia.
20 to 100 mm
Lead Length (Ft.)
3 m

Details

Item
Inline Reed Auto Switch
Switching Voltage
100 V AC, 200 V AC, 24 V AC/DC or less
Enclosure Type
IP67
Description/Special Features
Band, Rail, Tie-Rod and Direct Mounting Styles, Built-In Off-Delay Timer (200 ms), Grommet, Connector, Terminal Conduit, Din Terminal Electrical Entry, Heat Resistant, Magnetic Field Resistant, Reed Type Auto Switches, Solid State Switch
Display
LED Indicator Light
Type
Inline Reed Auto Switch
Switching Current
12.5 mA; 25 mA; Max. 50 mA
Minimum Cycle Time
1.2 ms
Number of Wires
2
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
14 Degrees F
Standards
RoHS Compliant

Description

Inline Reed Auto Switch, Inline Reed Auto Switch, Switching Current 12.5 mA; 25 mA; Max. 50 mA, Switching Voltage 100 V AC, 200 V AC, 24 V AC/DC or less, For Bore Dia. 20 to 100 mm, Lead Length (Ft.) 3 m, Enclosure Type IP67, Display LED Indicator Light, Number of Wires 2
