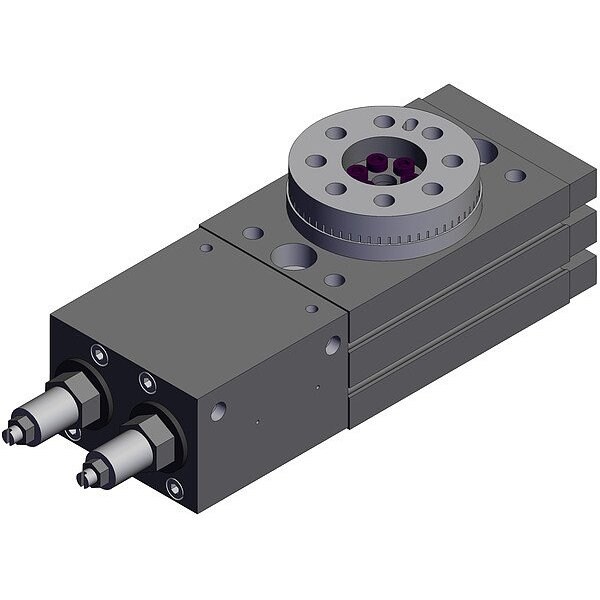

Rotary Table
Mfr # MSZB10A
Zoro # G514534104
product price: $679.99
/ea
Free Shipping & Returns
Key Features
End Cap Material
Aluminum Alloy
Number of Auto Switches
None
Standards
RoHS Compliant
System of Measurement
Metric
Weight
0.7 kg
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MSZB10A
Zoro #
G514534104
UPC #
-
Country of Origin
Japan
Dimensions
Inlet Size
M5
Overall Length
160 mm
Body Length
139.5 mm
Overall Width
50 mm
Body Height
47 mm
Overall Height
47 mm
Bore Diameter
10 mm
Description
Pneumatic Rotary Table, Bore Diameter 10 mm, Maximum Operating Pressure 1 MPa, Inlet Size M5, Air Inlet Type Metric Standard, Maximum Output Torque 1 N-m, Cushion Type None, Table Material Finish Anodized, Body Material Finish Anodized, Minimum Rotation Angle 0 Degrees , Air Inlet Center to Center Distance 60 mm, Standards RoHS Compliant, Bearing Retainer Material Aluminum Alloy, Body Height 47 mm, Body Material Aluminum Alloy, Allowable Kinetic Energy 0.01 J, Maximum Rotation Angle 190 Degrees
