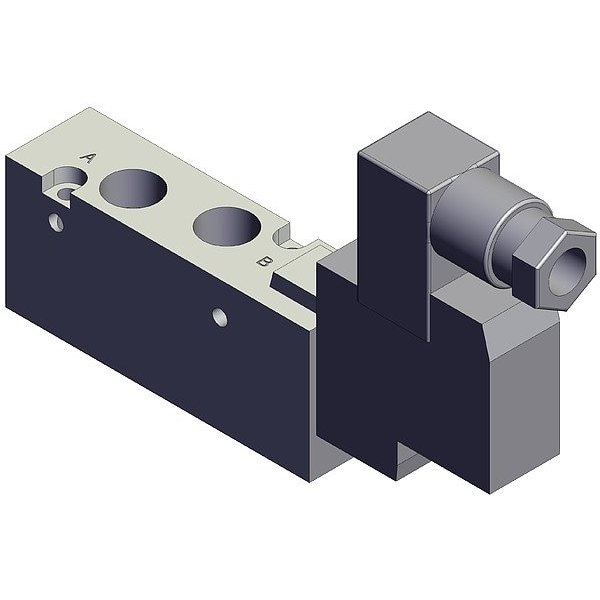

Solenoid Air Control Valve, 111 mm L

  • Mfr # SYJ7120-5DZ-01T
  • Zoro # G721914799
product price:
$
77.99
/ea

Key Features

Wire Rope Length
111 mm
Body Style
Body-Ported
Coefficient of Volume (Cv)
0.63
Return Action
Spring Return
Product Type
Solenoid Air Control Valve
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ7120-5DZ-01T
Zoro #
G721914799
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
111 mm
Overall Width
18 mm
Overall Height
65 mm
Overall Length
111 mm
Length
111 mm

Details

Body Style
Body-Ported
Coefficient of Volume (Cv)
0.63
Return Action
Spring Return
Product Type
Solenoid Air Control Valve
Actuator Type
Single Solenoid
Override
Non-Locking
Valve Type
Spool
Voltage
24V DC
Pilot Type
Internal Pilot
Pilot Pressure
0.15 MPa
Number of Positions
Two-Position
Operating Pressure - Minimum
0.1 MPa
Pilot Port Connection Gender
Female
Exhaust Port Connection Gender
Female
Inlet Port Connection Gender
Female
Electrical Connection Type
DIN Solenoid Connector
Operating Pressure - Maximum
0.7 MPa
Body Features
Single
Number of Ports
5
Operating Temperature - Maximum
50 Degrees C
Power Consumption
0.5 W
Response Time
30 msec
Valve Action
Normally Closed
Series
SYJ7000
Includes Solenoid Coil
Solenoid Coil Included
Number of Ways
Five-Way
Operating Temperature - Minimum
-10 Degrees C
Seal Material
Rubber
Item
Solenoid Air Control Valve
Body Material
Aluminum

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 65 mm, Overall Length 111 mm, Overall Width 18 mm
