Shop SMC

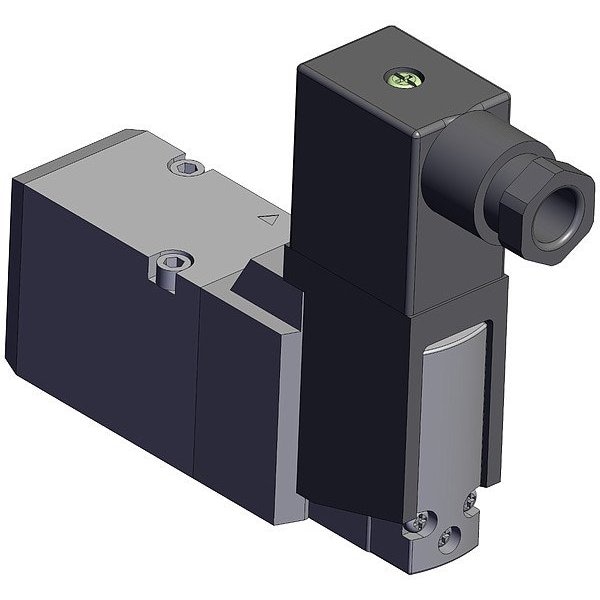

Solenoid Air Control Valve, 113 mm L

  • Mfr # VP344R-5DZ1-A

  • Zoro # G321915813

product price:  $78.29
/ea

Key Features

Seal Material
Rubber
Overall Height
107 mm
Body Style
Base-Mounted
Electrical Connection Type
DIN Solenoid Connector
Inlet Port Connection Gender
Female
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP344R-5DZ1-A
Zoro #
G321915813
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
107 mm
Overall Width
43 mm
Wire Rope Length
113 mm
Overall Length
113 mm

Details

Seal Material
Rubber
Body Style
Base-Mounted
Electrical Connection Type
DIN Solenoid Connector
Inlet Port Connection Gender
Female
Body Features
Single
Actuator Type
Single Solenoid
Operating Pressure - Minimum
0.2 MPa
Item
Solenoid Air Control Valve
Includes Solenoid Coil
Solenoid Coil Included
Valve Type
Spool
Product Type
Solenoid Air Control Valve
Exhaust Port Connection Gender
Female
Inlet Port Connection Type
BSPT
Voltage
24V DC
Power Consumption
0.55 W
Number of Ports
3
Return Action
Spring Return
Body Material
Aluminum
Operating Temperature - Minimum
-10 Degrees C
Coefficient of Volume (Cv)
0.9
Valve Action
Normally Closed
Pilot Port Connection Gender
Female
Exhaust Port Connection Type
BSPT
Series
VP300
Pilot Type
Internal Pilot
Response Time
38 msec
Number of Positions
Two-Position
Operating Temperature - Maximum
50 Degrees C
Pilot Pressure
0.2 MPa
Operating Pressure - Maximum
0.7 MPa
Number of Ways
Three-Way
Override
Non-Locking

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 107 mm, Overall Length 113 mm, Overall Width 43 mm
