Shop SMC

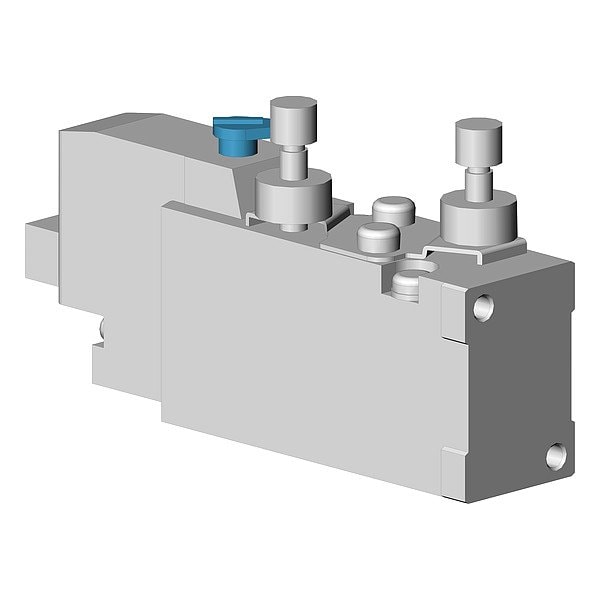

Solenoid Air Control Valve, 123 mm L

  • Mfr # SYJ5153-5LOZE

  • Zoro # G921915749

product price:  $79.49
/ea

Key Features

Exhaust Port Connection Gender
Female
Return Action
Spring Return
Inlet Port Connection Gender
Female
For Media
Air
Overall Height
28 3/32 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ5153-5LOZE
Zoro #
G921915749
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
28 3/32 mm
Wire Rope Length
123 mm
Overall Width
15 mm

Details

Exhaust Port Connection Gender
Female
Return Action
Spring Return
Inlet Port Connection Gender
Female
For Media
Air
Series
SYJ5000
Override
Non-Locking
Number of Positions
Two-Position
Pilot Pressure
0.15 MPa
Pilot Type
Internal Pilot
Body Style
Base-Mounted
Number of Ways
Five-Way
Product Type
Solenoid Air Control Valve
Valve Type
Spool
Valve Action
Normally Closed
Coefficient of Volume (Cv)
0.21
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Operating Temperature - Maximum
50 Degrees C
Body Features
Single
Item
Solenoid Air Control Valve
Operating Pressure - Maximum
0.7 MPa
Pilot Port Connection Gender
Female
Voltage
24V DC
Seal Material
Rubber
Body Material
Aluminum
Power Consumption
0.5 W
Lubrication
Lubrication Not Required
Response Time
25 msec
Electrical Connection Type
Plug-In
Includes Solenoid Coil
Solenoid Coil Included
Number of Ports
5
Actuator Type
Single Solenoid
Operating Pressure - Minimum
0.1 MPa
Operating Temperature - Minimum
-10 Degrees C

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 28 3/32 mm, Overall Length 123 mm, Overall Width 15 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
