Shop SMC

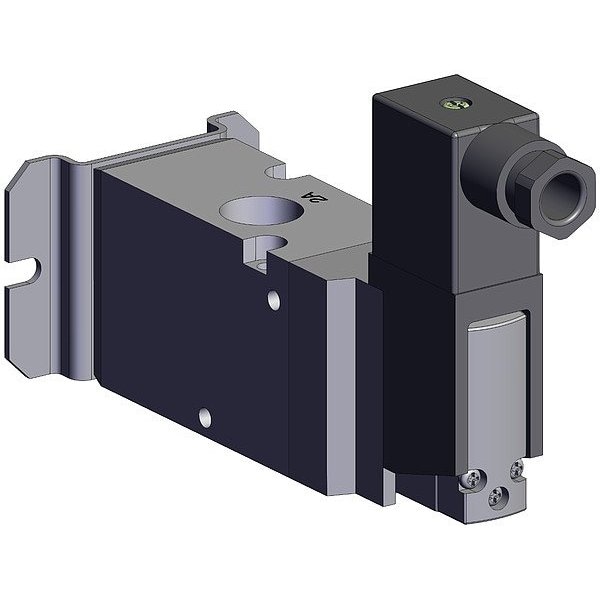

Solenoid Air Control Valve, 140 mm L

  • Mfr # VP542-5DZ1-03A-F

  • Zoro # G521915019

product price:  $92.69
/ea

Key Features

Body Style
Body-Ported
Number of Ports
3
Operating Pressure - Maximum
0.7 MPa
Pilot Pressure
0.2 MPa
Number of Ways
Three-Way
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP542-5DZ1-03A-F
Zoro #
G521915019
UPC #
-
Country of Origin
Japan

Dimensions

Overall Height
85 mm
Exhaust Port Connection Size
3/8
Wire Rope Length
140 mm
Inlet Port Connection Size
3/8
Overall Width
32 mm
Overall Length
140 mm

Details

Body Style
Body-Ported
Number of Ports
3
Operating Pressure - Maximum
0.7 MPa
Pilot Pressure
0.2 MPa
Number of Ways
Three-Way
Body Material
Aluminum
Exhaust Port Connection Type
BSPT
Actuator Type
Single Solenoid
Seal Material
Rubber
Inlet Port Connection Gender
Female
Response Time
39 msec
Override
Non-Locking
Operating Temperature - Maximum
50 Degrees C
Exhaust Port Connection Gender
Female
Voltage
24V DC
Body Features
Single
Power Consumption
0.55 W
Electrical Connection Type
DIN Solenoid Connector
Operating Pressure - Minimum
0.2 MPa
Coefficient of Volume (Cv)
1.8
Valve Action
Normally Closed
Return Action
Spring Return
Includes Solenoid Coil
Solenoid Coil Included
Number of Positions
Two-Position
Series
VP500
Pilot Type
Internal Pilot
Product Type
Solenoid Air Control Valve
Item
Solenoid Air Control Valve
Inlet Port Connection Type
BSPT
Operating Temperature - Minimum
-10 Degrees C
Pilot Port Connection Gender
Female
Valve Type
Spool

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 85 mm, Overall Length 140 mm, Overall Width 32 mm
