Shop SMC

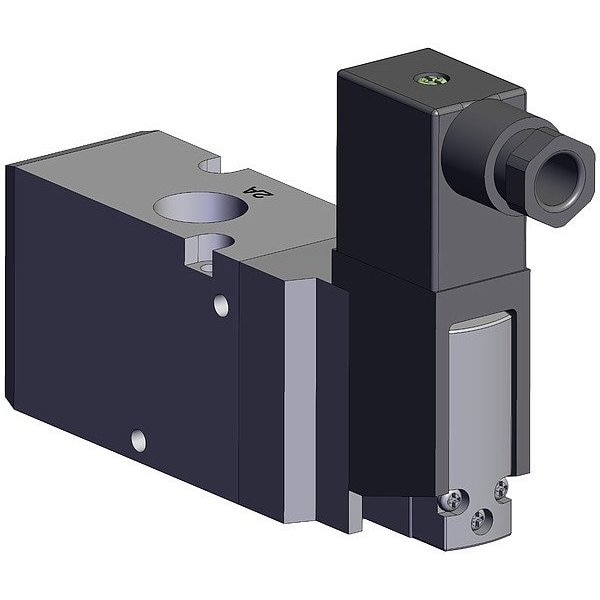

Solenoid Air Control Valve, 140 mm L

  • Mfr # VP542-5DZ1-03TA

  • Zoro # G921915565

product price:  $90.89
/ea

Key Features

Actuator Type
Single Solenoid
Operating Pressure - Minimum
0.2 MPa
Coefficient of Volume (Cv)
1.8
Valve Action
Normally Closed
Valve Type
Spool
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP542-5DZ1-03TA
Zoro #
G921915565
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
140 mm
Exhaust Port Connection Size
3/8
Overall Width
32 mm
Inlet Port Connection Size
3/8
Overall Height
85 mm
Overall Length
140 mm

Details

Actuator Type
Single Solenoid
Operating Pressure - Minimum
0.2 MPa
Coefficient of Volume (Cv)
1.8
Valve Action
Normally Closed
Valve Type
Spool
Body Features
Single
Operating Temperature - Minimum
-10 Degrees C
Inlet Port Connection Type
NPTF
Response Time
39 msec
Inlet Port Connection Gender
Female
Includes Solenoid Coil
Solenoid Coil Included
Operating Temperature - Maximum
50 Degrees C
Override
Non-Locking
Number of Ports
3
Operating Pressure - Maximum
0.7 MPa
Seal Material
Rubber
Series
VP500
Number of Ways
Three-Way
Body Style
Body-Ported
Body Material
Aluminum
Pilot Pressure
0.2 MPa
Return Action
Spring Return
Number of Positions
Two-Position
Voltage
24V DC
Electrical Connection Type
DIN Solenoid Connector
Item
Solenoid Air Control Valve
Product Type
Solenoid Air Control Valve
Exhaust Port Connection Gender
Female
Pilot Type
Internal Pilot
Power Consumption
0.55 W
Pilot Port Connection Gender
Female

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 85 mm, Overall Length 140 mm, Overall Width 32 mm
