Shop SMC

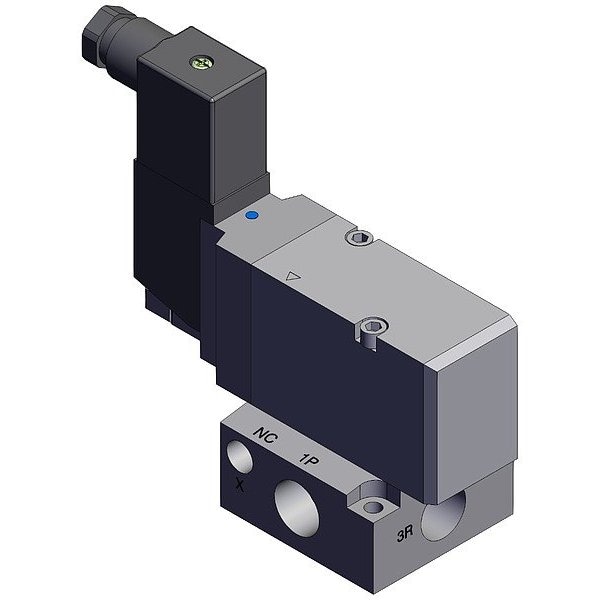

Solenoid Air Control Valve, 140 mm L

  • Mfr # VP544-5DZ1-03A

  • Zoro # G221915296

product price:  $90.39
/ea

Key Features

Seal Material
Rubber
Number of Ports
3
Exhaust Port Connection Gender
Female
Includes Solenoid Coil
Solenoid Coil Included
Return Action
Spring Return
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP544-5DZ1-03A
Zoro #
G221915296
UPC #
-
Country of Origin
Japan

Dimensions

Exhaust Port Connection Size
3/8
Wire Rope Length
140 mm
Overall Width
52 mm
Inlet Port Connection Size
3/8
Overall Height
114 mm
Overall Length
140 mm

Details

Seal Material
Rubber
Number of Ports
3
Exhaust Port Connection Gender
Female
Includes Solenoid Coil
Solenoid Coil Included
Return Action
Spring Return
Series
VP500
Valve Type
Spool
Power Consumption
0.55 W
Body Style
Base-Mounted
Valve Action
Normally Closed
Pilot Port Connection Gender
Female
Actuator Type
Single Solenoid
Exhaust Port Connection Type
BSPT
Number of Positions
Two-Position
Operating Temperature - Maximum
50 Degrees C
Pilot Type
Internal Pilot
Inlet Port Connection Gender
Female
Pilot Pressure
0.2 MPa
Product Type
Solenoid Air Control Valve
Coefficient of Volume (Cv)
2
Item
Solenoid Air Control Valve
Body Features
Single
Response Time
39 msec
Number of Ways
Three-Way
Body Material
Aluminum
Voltage
24V DC
Operating Pressure - Minimum
0.2 MPa
Electrical Connection Type
DIN Solenoid Connector
Operating Temperature - Minimum
-10 Degrees C
Inlet Port Connection Type
BSPT
Operating Pressure - Maximum
0.7 MPa
Override
Non-Locking

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 114 mm, Overall Length 140 mm, Overall Width 52 mm
