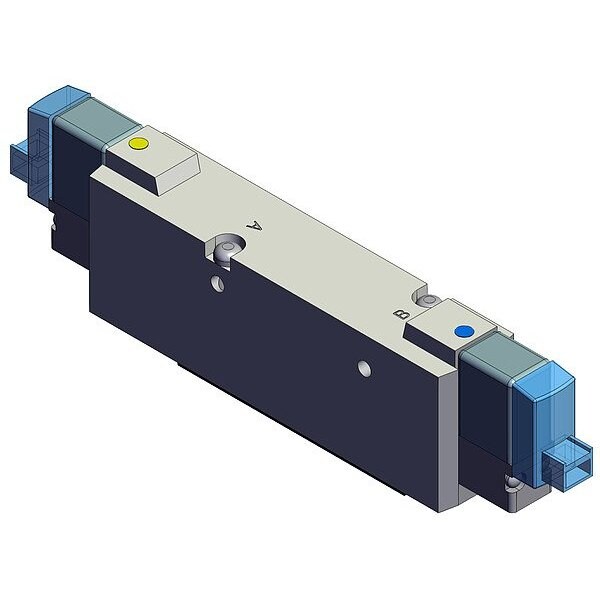

Solenoid Air Control Valve, 146 3/16 mm L

  • Mfr # SYJ7340-5LOZ

  • Zoro # G921914513

product price:  $111.99
/ea
Free Shipping & Returns

Key Features

Wire Rope Length
146 3/16 mm
Body Style
Base-Mounted
Exhaust Port Connection Gender
Female
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Operating Temperature - Minimum
-10 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ7340-5LOZ
Zoro #
G921914513
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
146 3/16 mm
Overall Width
18 mm
Overall Height
42 19/32 mm
Overall Length
146 3/16 mm

Details

Body Style
Base-Mounted
Exhaust Port Connection Gender
Female
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Operating Temperature - Minimum
-10 Degrees C
Seal Material
Rubber
Operating Pressure - Minimum
0.1 MPa
Return Action
Spring Return
Body Material
Aluminum
Response Time
60 msec
Number of Ports
5
Item
Solenoid Air Control Valve
Series
SYJ7000
Includes Solenoid Coil
Solenoid Coil Included
Lubrication
Lubrication Not Required
Operating Pressure - Maximum
0.7 MPa
For Media
Air
Electrical Connection Type
Plug-In
Operating Temperature - Maximum
50 Degrees C
Pilot Port Connection Gender
Female
Power Consumption
0.5 W
Valve Type
Spool
Voltage
24V DC
Coefficient of Volume (Cv)
0.74
Product Type
Solenoid Air Control Valve
Center Position
Closed
Override
Non-Locking
Pilot Type
Internal Pilot
Body Features
Single
Inlet Port Connection Gender
Female
Pilot Pressure
0.15 MPa
Number of Ways
Five-Way
Valve Action
Normally Closed
Actuator Type
Single Solenoid

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Closed, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 42 19/32 mm, Overall Length 146 3/16 mm, Overall Width 18 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
