Shop SMC

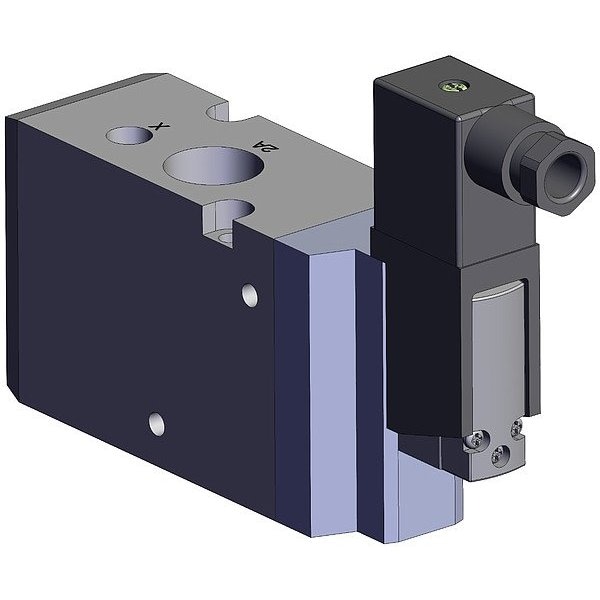

Solenoid Air Control Valve, 146 mm L

  • Mfr # VP742R-5GU1-04NA

  • Zoro # G421914952

product price:  $123.99
/ea
Free Shipping & Returns

Key Features

Inlet Port Connection Type
NPT
Actuator Type
Single Solenoid
Pilot Port Connection Gender
Female
Valve Type
Spool
Number of Positions
Two-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP742R-5GU1-04NA
Zoro #
G421914952
UPC #
-
Country of Origin
Japan

Dimensions

Inlet Port Connection Size
1/2
Pilot Port Connection Size
1/2
Overall Width
40 mm
Exhaust Port Connection Size
1/2
Wire Rope Length
146 mm
Overall Height
63 mm

Details

Inlet Port Connection Type
NPT
Actuator Type
Single Solenoid
Pilot Port Connection Gender
Female
Valve Type
Spool
Number of Positions
Two-Position
Body Features
Single
Coefficient of Volume (Cv)
3.6
Number of Ports
3
Pilot Port Connection Type
NPT
Operating Pressure - Maximum
0.7 MPa
Return Action
Spring Return
Response Time
22 msec
Voltage
24V DC
Inlet Port Connection Gender
Female
Operating Temperature - Maximum
50 Degrees C
Body Material
Aluminum
Body Style
Body-Ported
Operating Pressure - Minimum
0.2 MPa
Override
Non-Locking
Exhaust Port Connection Type
NPT
Number of Ways
Three-Way
Operating Temperature - Minimum
-10 Degrees C
Series
VP700
Valve Action
Normally Closed
Power Consumption
0.55 W
Item
Solenoid Air Control Valve
Includes Solenoid Coil
Solenoid Coil Included
Exhaust Port Connection Gender
Female
Seal Material
Rubber
Product Type
Solenoid Air Control Valve
Pilot Pressure
0.2 MPa

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 63 mm, Overall Length 146 mm, Overall Width 40 mm
