Shop SMC

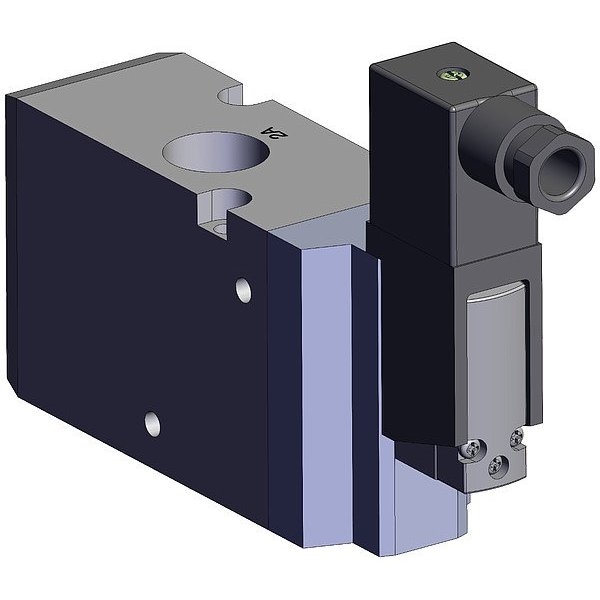

Solenoid Air Control Valve, 163 mm L

  • Mfr # VP742R-5DZ1-04NA

  • Zoro # G821914781

product price:  $131.99
/ea
Free Shipping & Returns

Key Features

Inlet Port Connection Size
1/2
Pilot Pressure
0.2 MPa
Pilot Port Connection Gender
Female
Exhaust Port Connection Type
NPT
Operating Temperature - Minimum
-10 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VP742R-5DZ1-04NA
Zoro #
G821914781
UPC #
-
Country of Origin
Japan

Dimensions

Inlet Port Connection Size
1/2
Pilot Port Connection Size
1/2
Wire Rope Length
163 mm
Overall Height
103 mm
Exhaust Port Connection Size
1/2
Overall Width
40 mm
Overall Length
163 mm

Details

Pilot Pressure
0.2 MPa
Pilot Port Connection Gender
Female
Exhaust Port Connection Type
NPT
Operating Temperature - Minimum
-10 Degrees C
Number of Ports
3
Coefficient of Volume (Cv)
3.6
Body Features
Single
Power Consumption
0.55 W
Valve Action
Normally Closed
Valve Type
Spool
Pilot Port Connection Type
NPT
Number of Positions
Two-Position
Seal Material
Rubber
Body Material
Aluminum
Product Type
Solenoid Air Control Valve
Body Style
Body-Ported
Inlet Port Connection Type
NPT
Inlet Port Connection Gender
Female
Operating Pressure - Minimum
0.2 MPa
Series
VP700
Response Time
44 msec
Override
Non-Locking
Return Action
Spring Return
Actuator Type
Single Solenoid
Operating Temperature - Maximum
50 Degrees C
Exhaust Port Connection Gender
Female
Includes Solenoid Coil
Solenoid Coil Included
Operating Pressure - Maximum
0.7 MPa
Electrical Connection Type
DIN Solenoid Connector
Voltage
24V DC
Item
Solenoid Air Control Valve
Number of Ways
Three-Way

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.2 MPa, Power Consumption 0.55 W, Override Non-Locking, Overall Height 103 mm, Overall Length 163 mm, Overall Width 40 mm
