MFR #
SV4100-5FU
Zoro #
G5244741
UPC #
-
Country of Origin
Japan
MFR #
SV4100-5FU
Zoro #
G5244741
UPC #
-
Country of Origin
Japan
Overall Height 6 15/32 in Overall Width 3 3/8 in Overall Length 18 31/32 in Overall Height 6 15/32 in Overall Width 3 3/8 in Overall Length 18 31/32 in

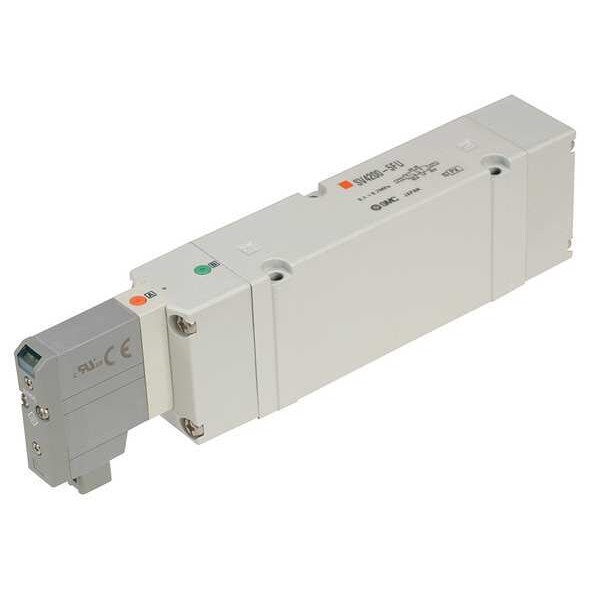

Item Solenoid Air Control Valve Body Style Base-Mounted Series SV4000 Voltage 24V DC Valve Actuator / Return Solenoid / Spring Pilot Pressure 22 psi Power Consumption 0.6 W Coefficient of Volume 1.3 Body Material Aluminum Override Non-Locking Actuator/Return Solenoid/Spring Electrical Connections Plug-In Valve Ways and Positions 5-Way/2-Position Standards RoHS Compliant NEMA Classification NEMA 6 Pressure Range 22 to 100 psi Ambient Temp. Range 14 Degrees to 122 Degrees F Max. CFM - Valves 1.3 cfm CFM 1.3 Shifting Technology Solenoid Air Valve Type 5-Way, 2-Position Operational Pressure Range 22 to 100 psi Number of Ways Five-Way Number of Positions Two-Position Seal Material Rubber Vacuum Rating Not Vacuum Operable Number of Ports 5 Includes Solenoid Coil Solenoid Coil Included For Media Air Pilot Type Internal Pilot Response Time 40 msec Operating Pressure - Minimum -14.5 psi Coefficient of Volume (Cv) 2 Flow Rate - Maximum 1.3 cfm Electrical Connection Type Hardwired Lubrication Lubrication Not Required Product Type Solenoid Air Control Valve NEMA Rating 6 Operating Pressure - Maximum 72 psi Spool Material Aluminum Actuator Type Single Solenoid Operating Temperature - Maximum 122 Degrees F Operating Temperature - Minimum 14 Degrees F Valve Type Spool Return Action Spring Return Item Solenoid Air Control Valve Body Style Base-Mounted Series SV4000 Voltage 24V DC Valve Actuator / Return Solenoid / Spring Pilot Pressure 22 psi Power Consumption 0.6 W Coefficient of Volume 1.3 Body Material Aluminum Override Non-Locking Actuator/Return Solenoid/Spring Electrical Connections Plug-In Valve Ways and Positions 5-Way/2-Position Standards RoHS Compliant NEMA Classification NEMA 6 Pressure Range 22 to 100 psi Ambient Temp. Range 14 Degrees to 122 Degrees F Max. CFM - Valves 1.3 cfm CFM 1.3 Shifting Technology Solenoid Air Valve Type 5-Way, 2-Position Operational Pressure Range 22 to 100 psi Number of Ways Five-Way Number of Positions Two-Position Seal Material Rubber Vacuum Rating Not Vacuum Operable Number of Ports 5 Includes Solenoid Coil Solenoid Coil Included For Media Air Pilot Type Internal Pilot Response Time 40 msec Operating Pressure - Minimum -14.5 psi Coefficient of Volume (Cv) 2 Flow Rate - Maximum 1.3 cfm Electrical Connection Type Hardwired Lubrication Lubrication Not Required Product Type Solenoid Air Control Valve NEMA Rating 6 Operating Pressure - Maximum 72 psi Spool Material Aluminum Actuator Type Single Solenoid Operating Temperature - Maximum 122 Degrees F Operating Temperature - Minimum 14 Degrees F Valve Type Spool Return Action Spring Return
See More Solenoid Air Control Valve, Valve Ways and Positions 5-Way/2-Position, Voltage 24V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Max. CFM - Valves 1.3 cfm, Operational Pressure Range 22 to 100 psi, NEMA Classification NEMA 6, Body Style Base-Mounted, Pilot Pressure 22 psi, Coefficient of Volume 1.3, Plug-In Electrical Connections, Shifting Technology Solenoid, Power Consumption 0.6 W, Ambient Temp. Range 14 Degrees to 122 Degrees F
