Smc

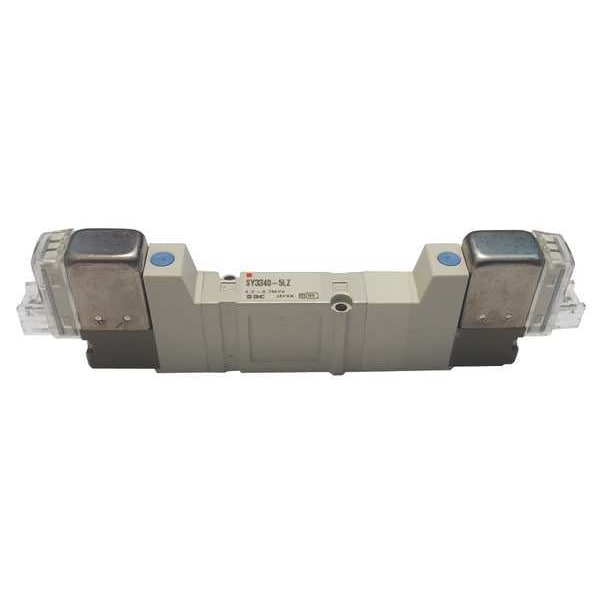

Solenoid Air Control Valve, 24VDC

product price: $134.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Ways and Positions 5-Way/3-Position
  • Voltage 24V DC
  • Center Position Closed
  • Valve Actuator / Return Solenoid / Spring
  • Coefficient of Volume 0.19
See all product information

Product Information

Dimensions

Overall Height 3/4 in
Overall Width 1 1/2 in
Overall Length 5 in

Details

Item Solenoid Air Control Valve
Valve Ways and Positions 5-Way/3-Position
Voltage 24V DC
Center Position Closed
Valve Actuator / Return Solenoid / Spring
Coefficient of Volume 0.19
Max. CFM - Valves 0.29 cfm
Operational Pressure Range 30 to 100 psi
CFM 0.29
Electrical Connections Plug Connector with Lead Wire
Pressure Range 30 to 100 psi
Shifting Technology Solenoid
Standards CE
Body Style Manifold
Pilot Pressure 30
Air Valve Type 5-Way, 3-Position
Ambient Temp. Range 14 Degrees to 122 Degrees F
Power Consumption 0.4 W

Description

Solenoid Air Control Valve, Valve Ways and Positions 5-Way/3-Position, Voltage 24V DC, Center Position Closed, Valve Actuator / Return Solenoid / Spring, Max. CFM - Valves 0.29 cfm, Operational Pressure Range 30 to 100 psi, Body Style Manifold, Pilot Pressure 30, Coefficient of Volume 0.19, Plug Connector with Lead Wire Electrical Connections, Shifting Technology Solenoid, Power Consumption 0.4 W, Ambient Temp. Range 14 Degrees to 122 Degrees F, Overall Height 3/4 in, Overall Length 5 in
