Shop SMC

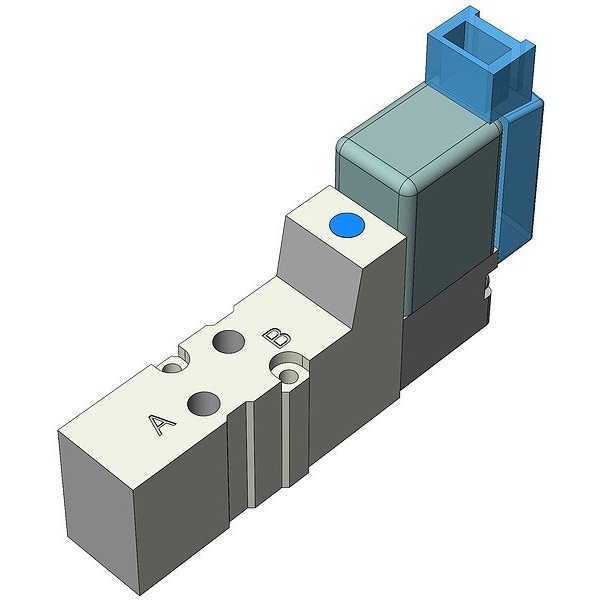

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3123-5MOZ-M3

  • Zoro # G821914927

product price:
$
54.69
/ea

Key Features

Number of Ports
5
Operating Temperature - Maximum
50 Degrees C
Pilot Port Connection Size
M3
Coefficient of Volume (Cv)
0.12
Power Consumption
0.5 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SYJ3123-5MOZ-M3
Zoro #
G821914927
UPC #
-
Country of Origin
Japan
Number of Ports
5
Operating Temperature - Maximum
50 Degrees C
Coefficient of Volume (Cv)
0.12
Power Consumption
0.5 W
Pilot Type
Internal Pilot
Body Style
Body-Ported
Includes Solenoid Coil
Solenoid Coil Included
For Media
Air
Product Type
Solenoid Air Control Valve
Item
Solenoid Air Control Valve
Pilot Pressure
0.15 MPa
Response Time
15 msec
Operating Temperature - Minimum
-10 Degrees C
Inlet Port Connection Gender
Female
Exhaust Port Connection Gender
Female
Valve Action
Normally Closed
Series
SYJ3000
Operating Pressure - Maximum
0.7 MPa
Seal Material
Rubber
Override
Non-Locking
Number of Positions
Two-Position
Return Action
Spring Return
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Valve Type
Spool
Operating Pressure - Minimum
0.15 MPa
Pilot Port Connection Gender
Female
Electrical Connection Type
Plug-In
Lubrication
Lubrication Not Required
Body Material
Die Cast Zinc
Voltage
24V DC
Actuator Type
Single Solenoid
Body Features
Single
Number of Ways
Five-Way

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
