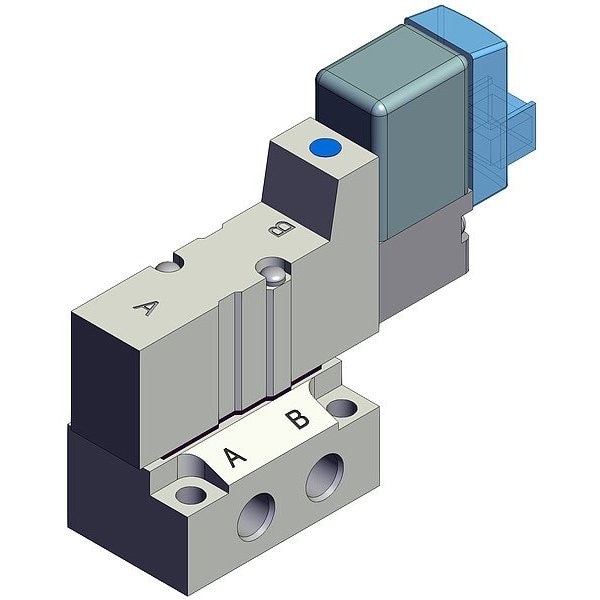

Solenoid Air Control Valve, 64 5/16 mm L
Mfr # SYJ3140-5LOZ-M5
Zoro # G521914876
product price:Â
$
57.79
/ea
Key Features
Actuator Type
Single Solenoid
Series
SYJ3000
Return Action
Spring Return
Overall Length
64 5/16 mm
Operating Temperature - Minimum
-10 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SYJ3140-5LOZ-M5
- Zoro #
- G521914876
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Overall Length
- 64 5/16 mm
- Overall Height
- 39 3/32 mm
- Overall Width
- 11 mm
- Exhaust Port Connection Size
- M5
- Pilot Port Connection Size
- M5
- Inlet Port Connection Size
- M5
- Wire Rope Length
- 64 5/16 mm
- Length
- 64 5/16 mm
Description
Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
