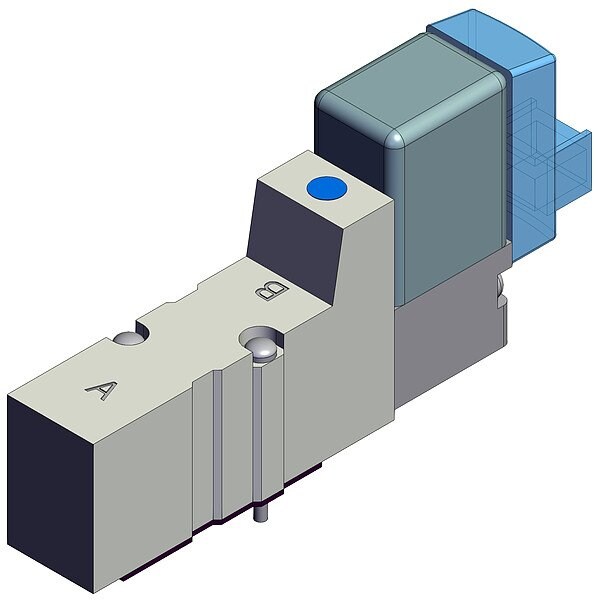

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3140-5LOZ

  • Zoro # G621915131

product price:
$
49.19
/ea

Key Features

Pilot Pressure
0.15 MPa
Coefficient of Volume (Cv)
0.12
Includes Solenoid Coil
Solenoid Coil Included
Overall Width
11 mm
Override
Non-Locking
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3140-5LOZ
Zoro #
G621915131
UPC #
-
Country of Origin
Japan

Dimensions

Overall Width
11 mm
Wire Rope Length
64 5/16 mm
Overall Height
39 3/32 mm
Overall Length
64 5/16 mm
Length
64 5/16 mm

Details

Pilot Pressure
0.15 MPa
Coefficient of Volume (Cv)
0.12
Includes Solenoid Coil
Solenoid Coil Included
Override
Non-Locking
Body Material
Die Cast Zinc
Valve Action
Normally Closed
Return Action
Spring Return
Inlet Port Connection Gender
Female
Body Style
Base-Mounted
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Number of Ways
Five-Way
Operating Pressure - Maximum
0.7 MPa
Pilot Port Connection Gender
Female
Operating Temperature - Minimum
-10 Degrees C
Power Consumption
0.5 W
Response Time
15 msec
Operating Temperature - Maximum
50 Degrees C
Valve Type
Spool
Body Features
Single
For Media
Air
Item
Solenoid Air Control Valve
Seal Material
Rubber
Number of Positions
Two-Position
Exhaust Port Connection Gender
Female
Electrical Connection Type
Plug-In
Pilot Type
Internal Pilot
Series
SYJ3000
Operating Pressure - Minimum
0.15 MPa
Lubrication
Lubrication Not Required
Number of Ports
5
Voltage
24V DC
Product Type
Solenoid Air Control Valve
Actuator Type
Single Solenoid

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
