Shop SMC

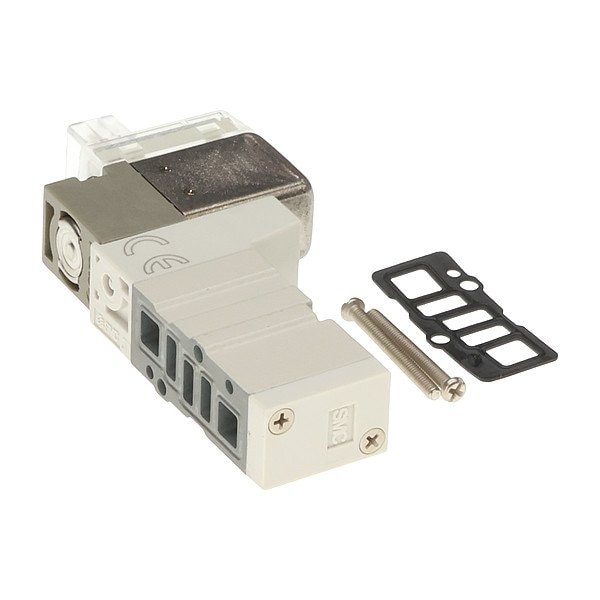

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3143-5LOU-Q

  • Zoro # G821915726

product price:
$
60.19
/ea

Key Features

Actuator Type
Single Solenoid
Body Style
Base-Mounted
Electrical Connection Type
Plug-In
Body Material
Die Cast Zinc
Pilot Type
Internal Pilot
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3143-5LOU-Q
Zoro #
G821915726
UPC #
-
Country of Origin
Japan

Dimensions

Pilot Port Connection Size
M5
Overall Height
39 3/32 mm
Wire Rope Length
64 5/16 mm
Overall Width
11 mm
Overall Length
64 5/16 mm
Length
64 5/16 mm

Details

Actuator Type
Single Solenoid
Body Style
Base-Mounted
Electrical Connection Type
Plug-In
Body Material
Die Cast Zinc
Pilot Type
Internal Pilot
Item
Solenoid Air Control Valve
Exhaust Port Connection Gender
Female
Pilot Port Connection Gender
Female
Inlet Port Connection Gender
Female
For Media
Air
Operating Pressure - Minimum
0.15 MPa
Lubrication
Lubrication Not Required
Number of Ways
Five-Way
Includes Solenoid Coil
Solenoid Coil Included
Return Action
Spring Return
Coefficient of Volume (Cv)
0.12
Response Time
15 msec
Operating Temperature - Maximum
50 Degrees C
Voltage
24V DC
Number of Ports
5
Seal Material
Rubber
Valve Type
Spool
Operating Pressure - Maximum
0.7 MPa
Override
Non-Locking
Valve Action
Normally Closed
Power Consumption
0.5 W
Operating Temperature - Minimum
-10 Degrees C
Product Type
Solenoid Air Control Valve
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Pilot Pressure
0.15 MPa
Series
SYJ3000
Body Features
Single
Number of Positions
Two-Position

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
