Shop SMC

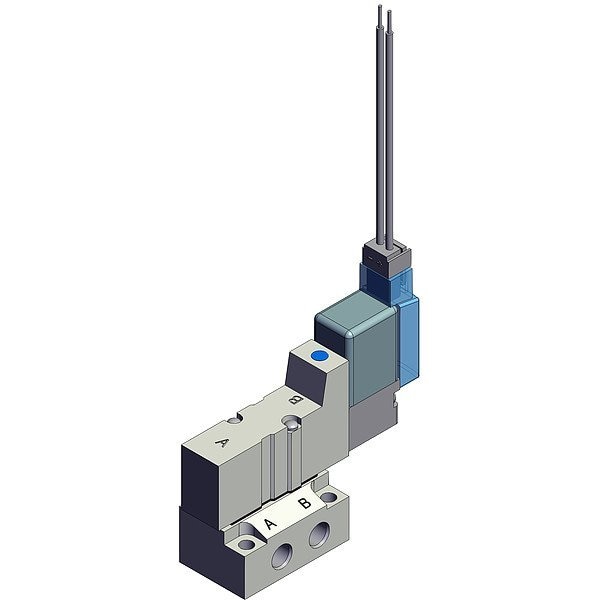

Solenoid Air Control Valve, 64 5/16 mm L

  • Mfr # SYJ3143-5MZ-M5

  • Zoro # G821914651

product price:  $65.15
/ea

Key Features

Includes Solenoid Coil
Solenoid Coil Included
Operating Temperature - Maximum
50 Degrees C
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Valve Type
Spool
Body Style
Base-Mounted
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ3143-5MZ-M5
Zoro #
G821914651
UPC #
-
Country of Origin
Japan

Dimensions

Inlet Port Connection Size
M5
Overall Height
39 3/32 mm
Pilot Port Connection Size
M5
Exhaust Port Connection Size
M5
Wire Rope Length
64 5/16 mm
Overall Width
11 mm
Overall Length
64 5/16 mm

Details

Includes Solenoid Coil
Solenoid Coil Included
Item
Solenoid Air Control Valve
Operating Temperature - Maximum
50 Degrees C
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Valve Type
Spool
Body Style
Base-Mounted
Operating Pressure - Minimum
0.15 MPa
Actuator Type
Single Solenoid
Pilot Type
Internal Pilot
Body Features
Single
Pilot Pressure
0.15 MPa
Operating Pressure - Maximum
0.7 MPa
Number of Ports
5
Coefficient of Volume (Cv)
0.12
Power Consumption
0.5 W
Electrical Connection Type
Plug-In
Response Time
15 msec
Series
SYJ3000
Valve Action
Normally Closed
Number of Ways
Five-Way
Operating Temperature - Minimum
-10 Degrees C
Product Type
Solenoid Air Control Valve
For Media
Air
Body Material
Die Cast Zinc
Override
Non-Locking
Exhaust Port Connection Gender
Female
Pilot Port Connection Gender
Female
Inlet Port Connection Gender
Female
Lubrication
Lubrication Not Required
Seal Material
Rubber
Voltage
24V DC
Number of Positions
Two-Position
Return Action
Spring Return

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Base-Mounted, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/32 mm, Overall Length 64 5/16 mm, Overall Width 11 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
