Shop SMC

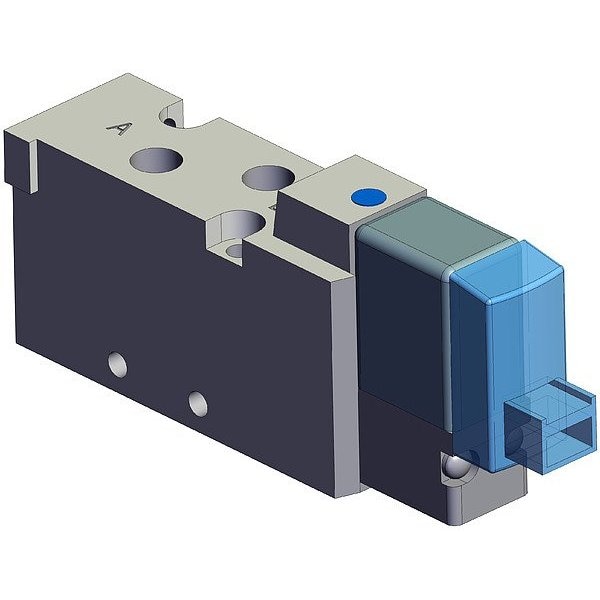

Solenoid Air Control Valve, 73 mm L

  • Mfr # SYJ5120-5LOU-M5

  • Zoro # G421914532

product price:
$
60.15
/ea

Key Features

Body Features
Single
Coefficient of Volume (Cv)
0.21
Pilot Port Connection Gender
Female
Inlet Port Connection Gender
Female
Inlet Port Connection Type
BSPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SYJ5120-5LOU-M5
Zoro #
G421914532
UPC #
-
Country of Origin
Japan

Dimensions

Wire Rope Length
73 mm
Pilot Port Connection Size
M5
Overall Width
16 mm
Exhaust Port Connection Size
M5
Overall Height
39 3/16 mm
Inlet Port Connection Size
M5
Overall Length
73 mm
Length
73 mm

Details

Body Features
Single
Coefficient of Volume (Cv)
0.21
Pilot Port Connection Gender
Female
Inlet Port Connection Gender
Female
Inlet Port Connection Type
BSPT
Exhaust Port Connection Gender
Female
Exhaust Port Connection Type
BSPT
Return Action
Spring Return
Operating Temperature - Maximum
50 Degrees C
Operating Temperature - Minimum
-10 Degrees C
Valve Action
Normally Closed
Voltage
24V DC
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
Body Material
Aluminum
Product Type
Solenoid Air Control Valve
Number of Ways
Five-Way
Seal Material
Rubber
Valve Type
Spool
Number of Positions
Two-Position
Item
Solenoid Air Control Valve
Series
SYJ5000
Operating Pressure - Maximum
0.7 MPa
Actuator Type
Single Solenoid
Lubrication
Lubrication Not Required
Power Consumption
0.5 W
Pilot Pressure
0.15 MPa
Includes Solenoid Coil
Solenoid Coil Included
Body Style
Body-Ported
Override
Non-Locking
Response Time
25 msec
For Media
Air
Number of Ports
5
Operating Pressure - Minimum
0.1 MPa
Electrical Connection Type
Plug-In
Pilot Type
Internal Pilot

Description

Solenoid Air Control Valve, Voltage 24V DC, Center Position Not Applicable, Body Style Body-Ported, Pilot Pressure 0.15 MPa, Power Consumption 0.5 W, Override Non-Locking, Overall Height 39 3/16 mm, Overall Length 73 mm, Overall Width 16 mm, Standards ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
